Height
125 cm
Width
392 cm
Main material
Aluminium
Color
Anthracite Grey
RAL
7016
Finishing
Powder coating
Type of filling
openworked
Pattern / Design
--
Opening system
Fighting
Opening direction
To the house, see technical diagram
Height
125 cm
Width
392 cm
Main material
Aluminium
Color
Anthracite Grey
RAL
7016
Finishing
Powder coating
Type of filling
openworked
Pattern / Design
--
Opening system
Fighting
Opening direction
To the house, see technical diagram
Compatible engines
Yes
Compatible motorization type
With articulated arms
Frame material
Aluminium
Width between pillars
397 cm
Minimum pillar height
140 cm
Operating clearance
5 mm
Pivoting system
Ball bearing
Blade section
155*15 mm
Thickness of the blades
1,2 mm
Amounts Section
78*47 mm
Stud thickness
1,5 mm
Sleeper Section
70*30 mm
Sleeper thickness
1,3 mm
Stud/rail assembly
Self-enhancing vis
Locking system
Cylinder lock
Handle material
Aluminium
Handle colour
Black
Type of lock
Keys (5)
Rod assembly
Self-enhancing vis
Supplied accessories
Yes
Number of upper hinges
2
Number of lower hinges
2
Central stop
Yes
End stop
2
Top cover cap
Yes
Assembly instructions
Yes
Assembly time
8 h
Recommended number of persons for assembly
2
Warranty
2 ans
Eligibility Extended warranty 5 years
No
Eligibility Extension of warranty 10 years
No
Available in sliding
Yes
Weight of package No.1
25.0 kg
Weight of package No.2
25.0 kg
The VOGEL swing driveway gate with its contemporary design is ideal for areas exposed to the wind.
Description : Open boarded swing gate, with horizontal slats and flat top
Material : Aluminium
Colour : Anthracite Grey (RAL 7016)
Dimensions : Width 392 cm x Height 125 cm
Required width between pillars : 397 cm
Minimum height of pillars : 140 cm
Inspired and designed in France
This do-it-yourself open-boarded double gate kit contains :
- 10 powder coated slats (Height 15.5 cm)
- 2 reinforced powder coated slats for motorisation (Height 15.5 cm)
- 2 upper hinges
- 2 bottom hinges
- 1 central stop
- 2 reception stops
- 1 sash lock
- 1 double handles (Black colour)
- Set of 5 keys
- Finishing caps
- Screws and bolts

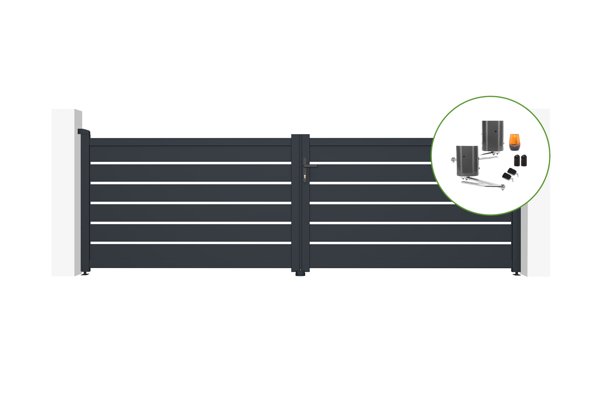

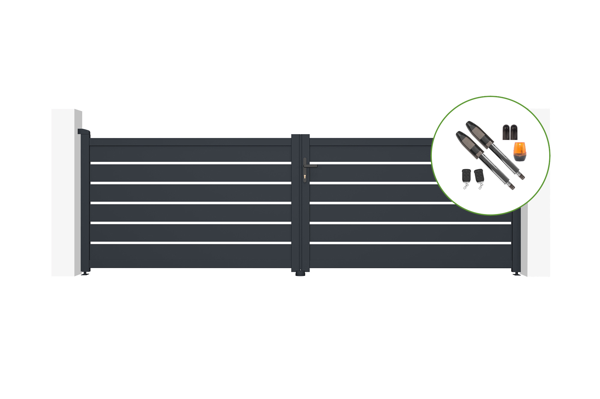

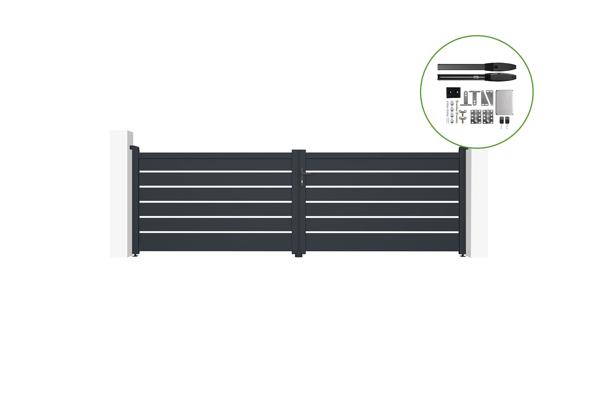

If you wish to motorise your double leaves gate, Casanoov suggests packs in the "Swing Gate" category
You will find promotional packs offering you a set consisting of a swing driveway gate of your choice accompanied by the appropriate automation.

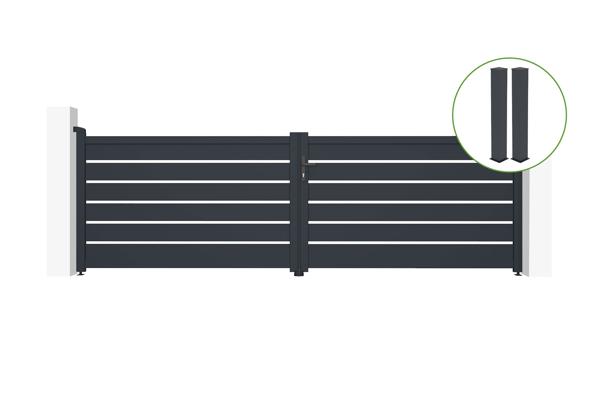

In case your installation requires pillars, promotional packages are also available containing a swing driveway gate of your choice, together with two aluminium posts to match the chosen entrance gate.
FYI : The minimum pillar height for this gate is 140cm
The VOGEL model is also available in other sizes and colours.
For a harmonious exterior, we propose matching sliding gates, garden gates and fences.

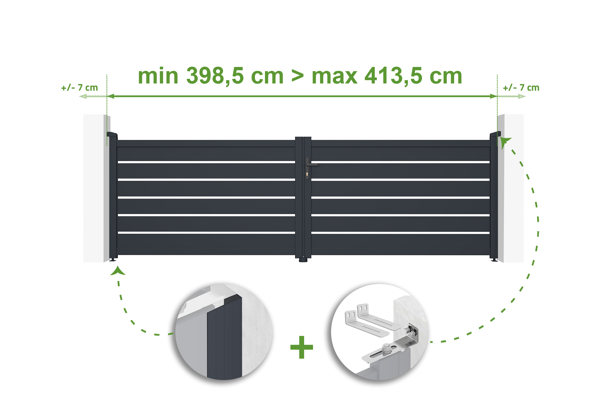

To further adapt your swing gate to your project, all our double gate gates can be cut to width
(For an asymmetrical design for example or a narrower entrance).
Driveway gate delivered in kit form.
Clear instructions, quick and easy assembly.
You will find all the necessary information about this product in the technical data.
Welcome to Casanoov!
Specializing in the online sale of equipment dedicated to the home environment, Casanoov makes it a point of honor to offer you a complete offer to delimit your exterior according to the latest market trends at affordable prices. Ultra competitive prices.
Quality at the right price! This is Casanoov's motto.
Discover our wide range of aluminum swing gates, sliding gates, gates and fences, the latest trend in terms of material.
All our products have been thought out and designed in kit form.
Easy and quick to install, assembling your Casanoov gates and fences yourself will be child's play.
All our models have been designed to combine both safety and aesthetics.
Casanoov offers you offers the choice to meet all your desires and requirements: classic models with full filling, semi-perforated, perforated or ultra perforated (barred) or more modern with our design models. At Casanoov, everything is done to satisfy you!
Our design models are inspired and designed in France, they are available in 6 variations and each has unique decorative plates, designed by us for you.
Choose the range that best suits you for a modern exterior that suits you.
And for an even more modern exterior, think about automating your entrance and browse our category of motorization which offers you automations for swing and sliding gates adapted to your needs.
Also discover all our accessories for a harmonious exterior, such as our aluminum posts in colors matching our gates, gates and garden fences.
To make your choice easier, you have all the technical information as well as visuals in situation on all of our product sheets.
Payments are secure and delivery is free. Enjoy and happy shopping!
Download the assembly instructions (PDF)
