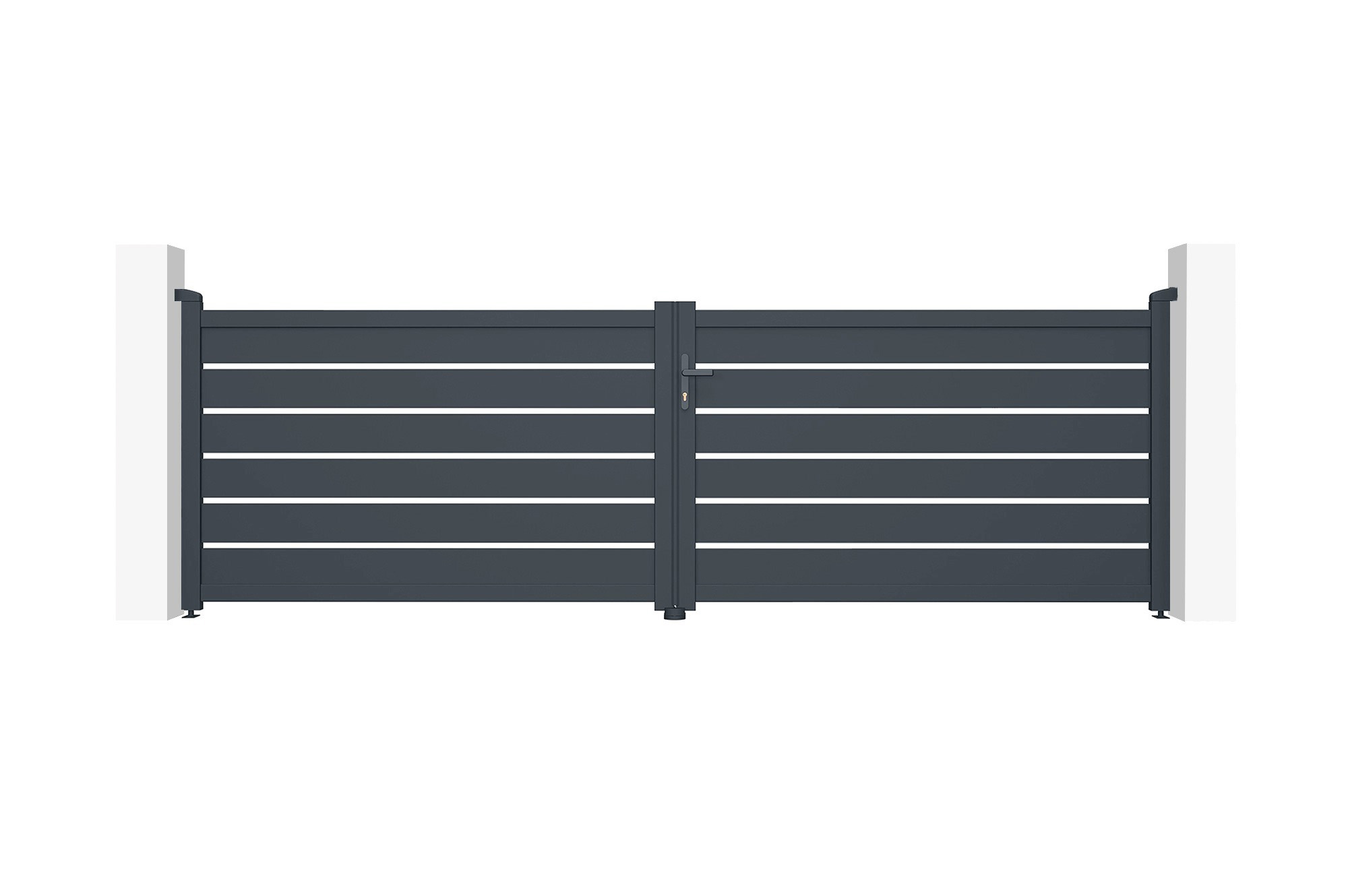

Aluminium swinging gate 4m grey VOGEL H.120 + 2 posts

SKU : PAC-000231
1197 €   1149 €
  • This pack contains:
  • Gray VOGEL openwork swing gate
  • Width 392cm and Height 122cm
  • 2 aluminum poles H. 166cm gray

In stock - Delivery between 02/11 and 06/11
Free shipping

Technical data
Description
Technical drawings
Assembly instructions

Technical data

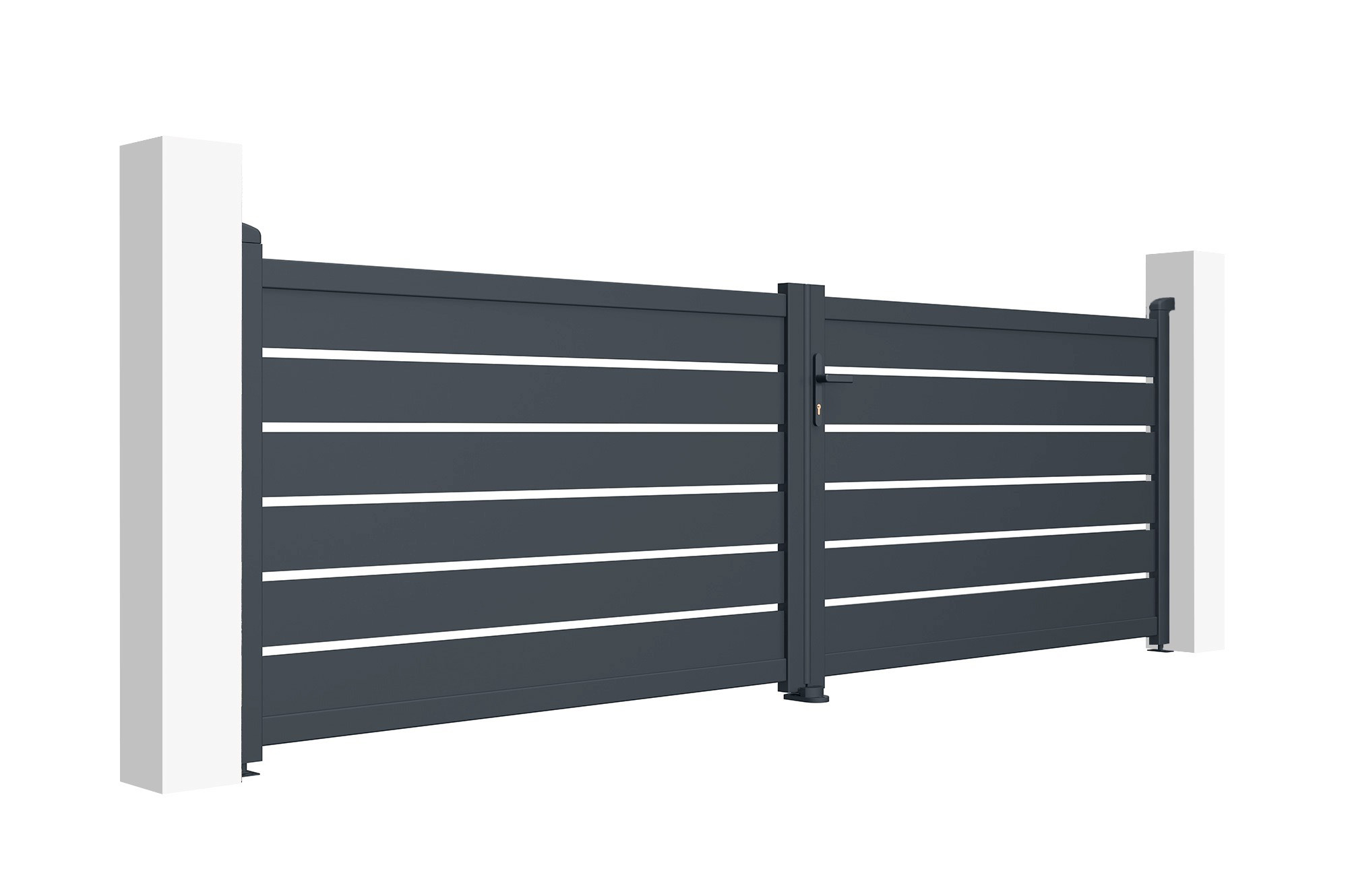

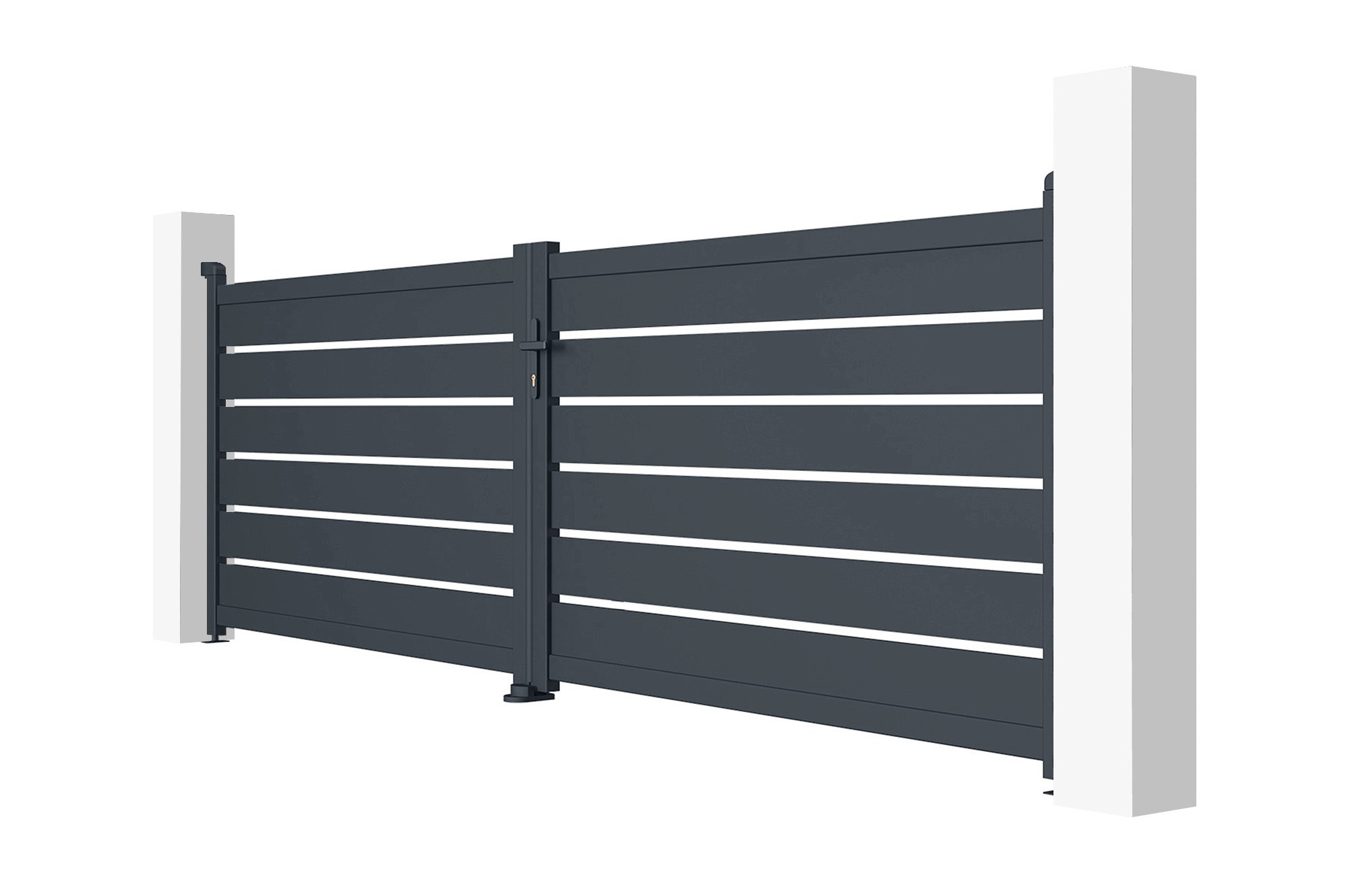

    Aluminium swing gate 4m VOGEL 400B120 GREY

  • Height

    125 cm

  • Width

    392 cm

  • Main material

    Aluminium

  • Color

    Anthracite Grey

  • RAL

    7016

  • Finishing

    Powder coating

  • Type of filling

    openworked

  • Pattern / Design

  • Opening system

    Fighting

    Aluminium swing gate 4m VOGEL 400B120 GREY

  • Height

    125 cm

  • Width

    392 cm

  • Main material

    Aluminium

  • Color

    Anthracite Grey

  • RAL

    7016

  • Finishing

    Powder coating

  • Type of filling

    openworked

  • Pattern / Design

  • Opening system

    Fighting

  • Opening direction

    To the house, see technical diagram

  • Compatible engines

    Yes

  • Compatible motorization type

    A bras articulés

  • Frame material

    Aluminium

  • Width between pillars

    397 cm

  • Minimum pillar height

    140 cm

  • Operating clearance

    5 cm

  • Pivoting system

    Ball bearing

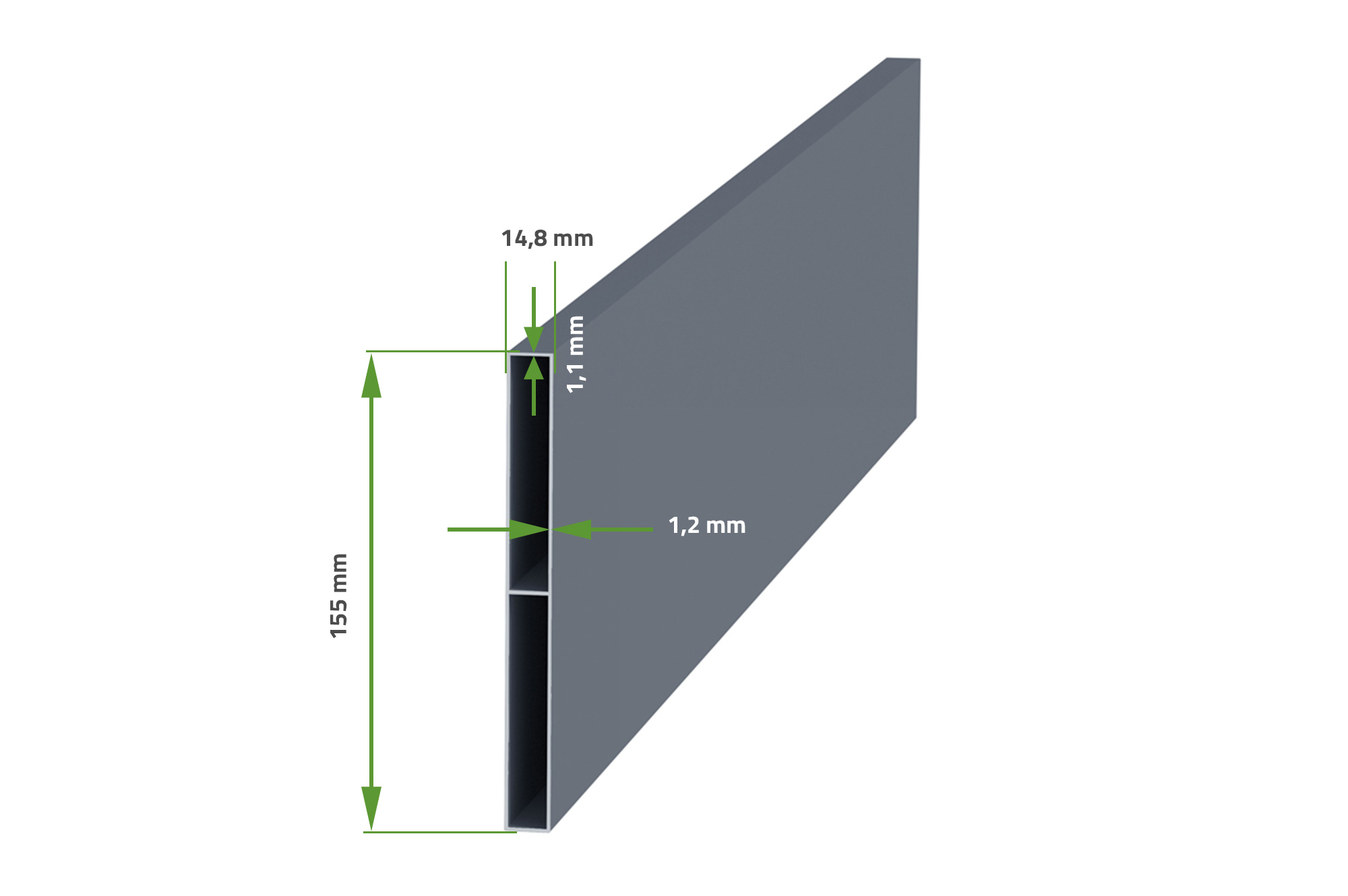

  • Blade section

    155*15 mm

  • Thickness of the blades

    1,2 mm

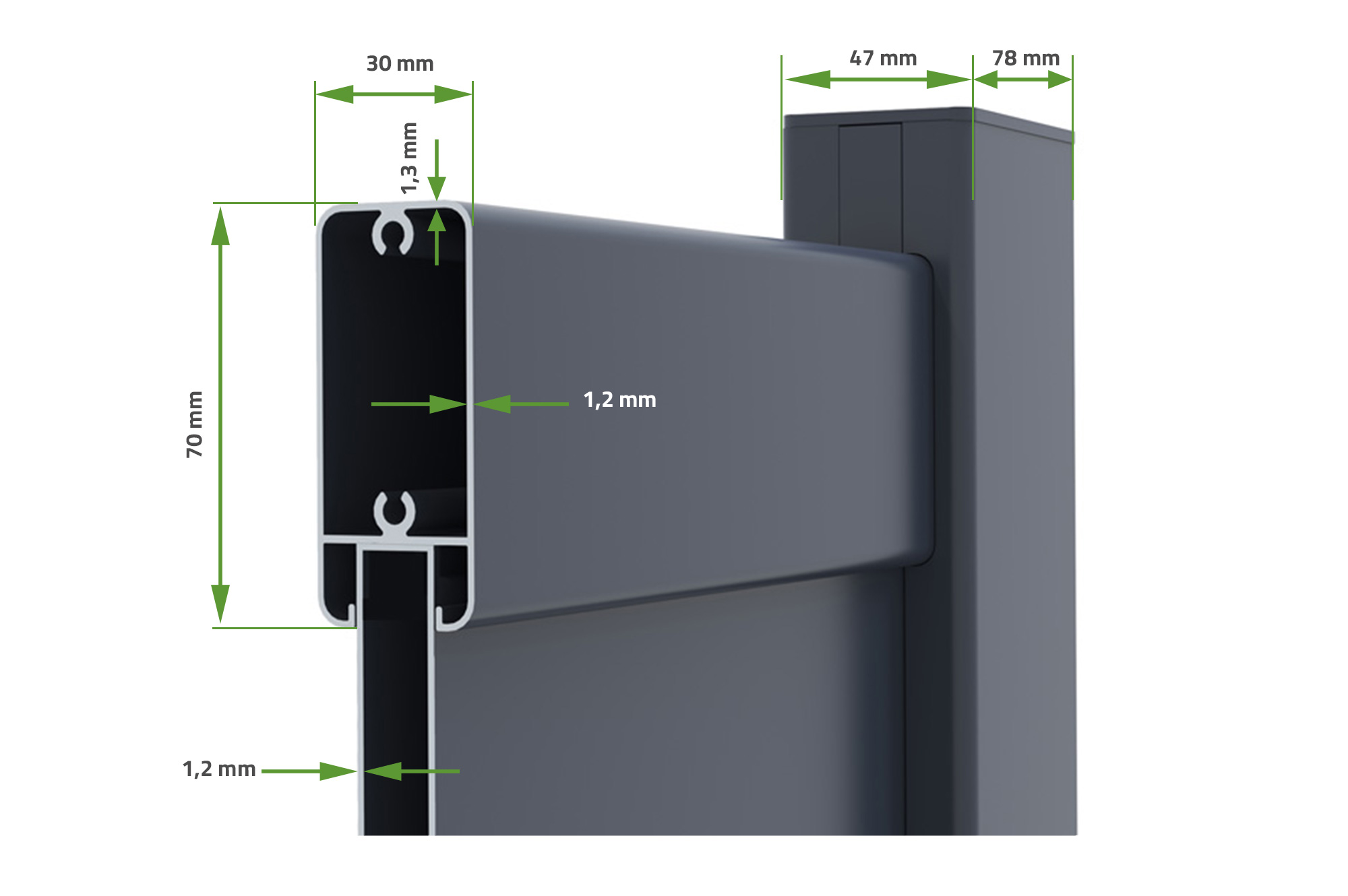

  • Amounts Section

    78*47 mm

  • Stud thickness

    1,5 mm

  • Sleeper Section

    70*30 mm

  • Sleeper thickness

    1,3 mm

  • Stud/rail assembly

    Self-enhancing vis

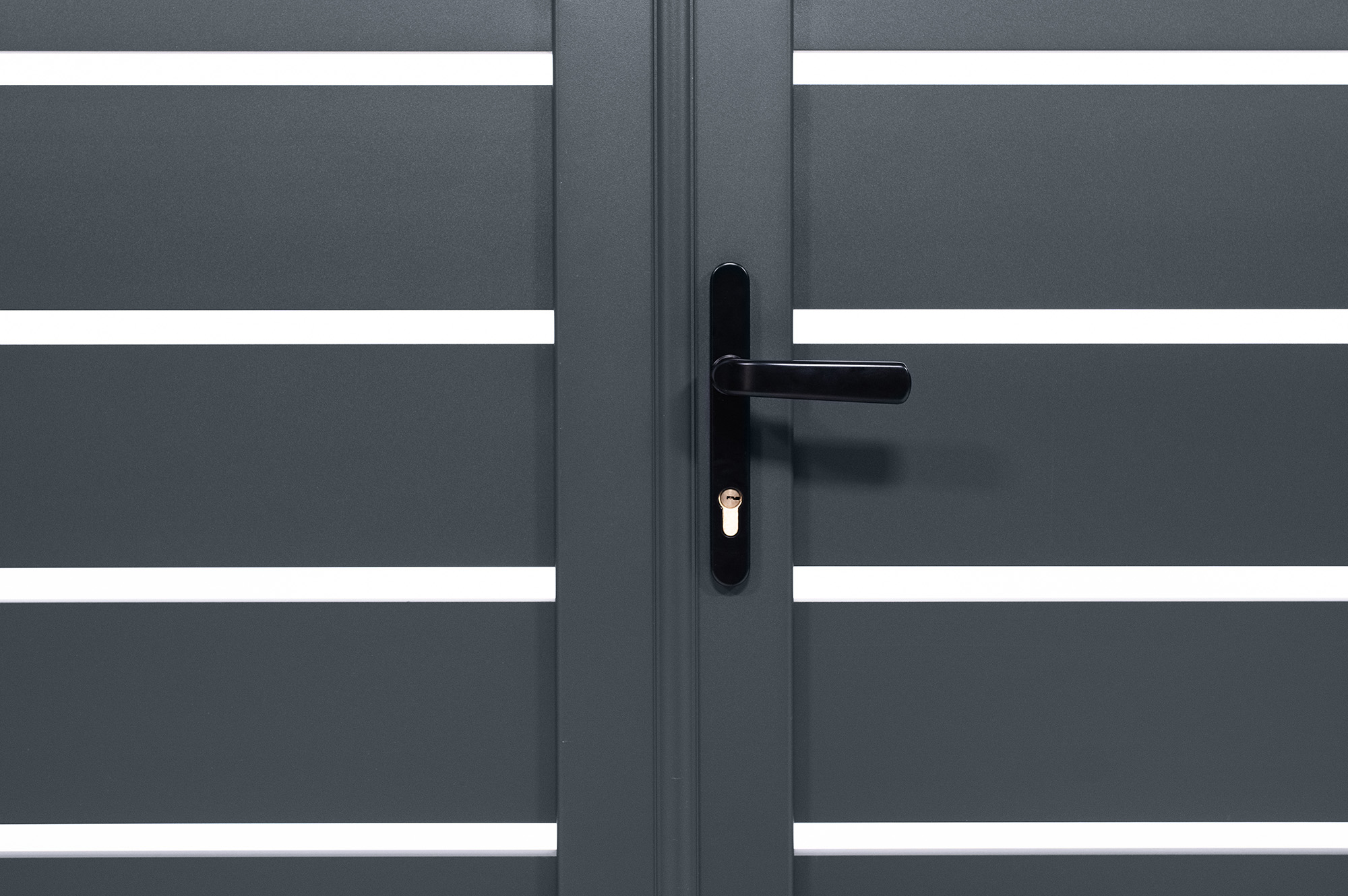

  • Locking system

    Cylinder lock

  • Handle material

    Aluminium

  • Handle colour

    Black

  • Type of lock

    4 keys

  • Rod assembly

    Self-enhancing vis

  • Supplied accessories

    Yes

  • Number of upper hinges

    2

  • Number of lower hinges

    2

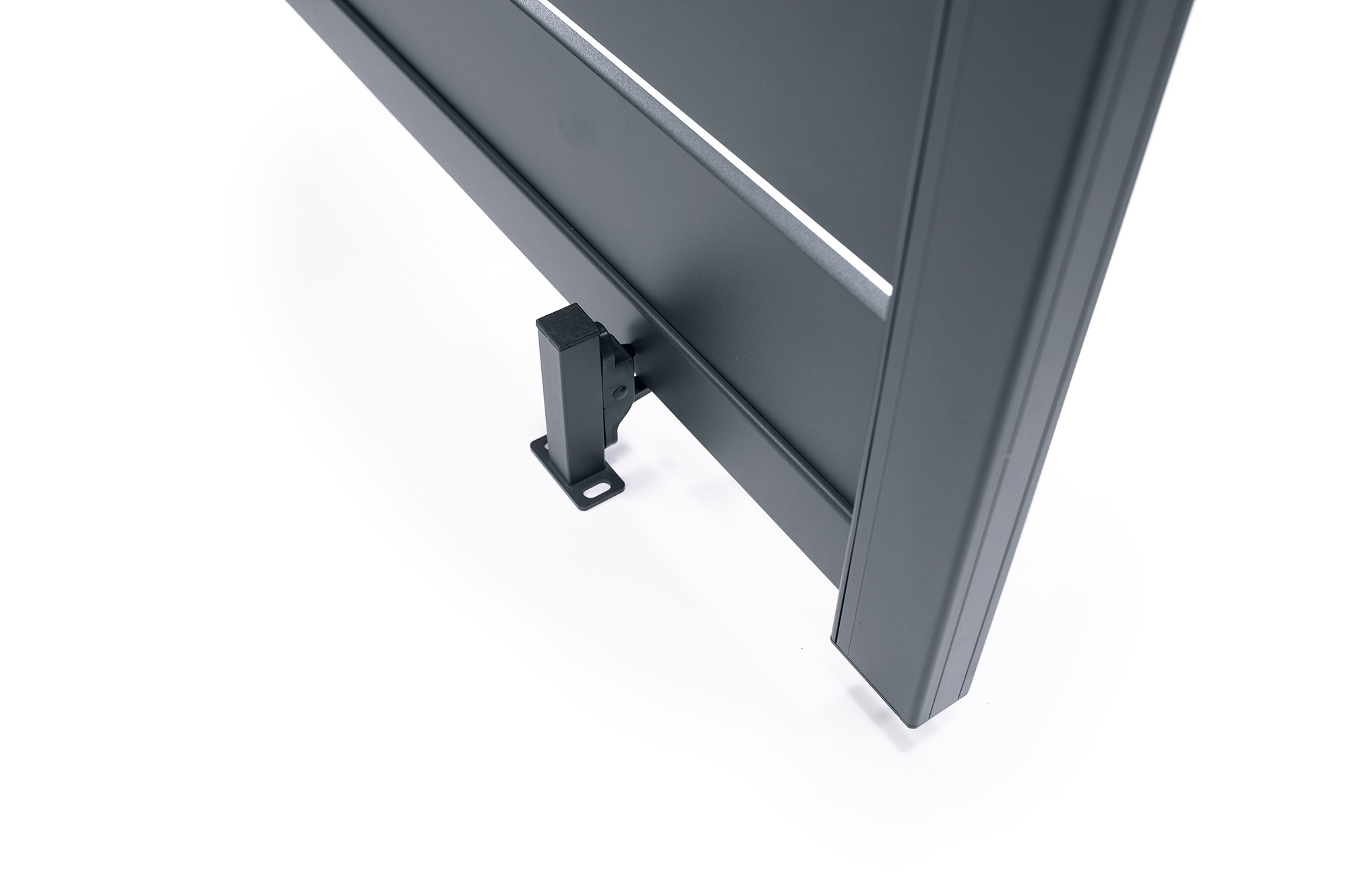

  • Automatic central stop

    Yes

  • End stop

    2

  • Top cover cap

    Yes

  • Assembly instructions

    Yes

  • Assembly time

    8 h

  • Recommended number of persons for assembly

    2

  • Warranty

    2 years

  • Eligibility Extended warranty 5 years

    No

  • Eligibility Extension of warranty 10 years

    No

  • Available in sliding

    Yes

  • Weight of package No.1

    25.0 kg

  • Weight of package No.2

    25.0 kg

    • Aluminium Post H.166cm EIFEL 15x15cm for gate

  • Height

    166 cm

  • Section

    15*15 cm

  • Thickness

    3 mm

  • Main material

    Aluminium

  • Color

    Anthracite Grey

  • RAL

    7016

  • Finishing

    Powder coating

  • Mounting plate included

    Yes

  • Stage size

    20*20 cm

  • Platinum thickness

    10 mm

  • Type of installation

    to be screwed or sealed

  • Hat size

    17*17 cm

  • Screws included

    Yes

  • Notice

    Yes

  • Warranty

    2 years

  • Weight of package No.3 (x2)

    12.0 kg

Description

  • This pack contains:
  • Gray VOGEL openwork swing gate
  • Width 392cm and Height 122cm
  • 2 aluminum poles H. 166cm gray

Aluminium swing gate 4m VOGEL 400B120 GREY

This openwork swing gate combines protection and design.
Colour anthracite grey. RAL7016.
The aluminium plate is 20/100 thick.
2 reinforced slats to position …

Aluminium swing gate 4m VOGEL 400B120 GREY

This openwork swing gate combines protection and design.
Colour anthracite grey. RAL7016.
The aluminium plate is 20/100 thick.

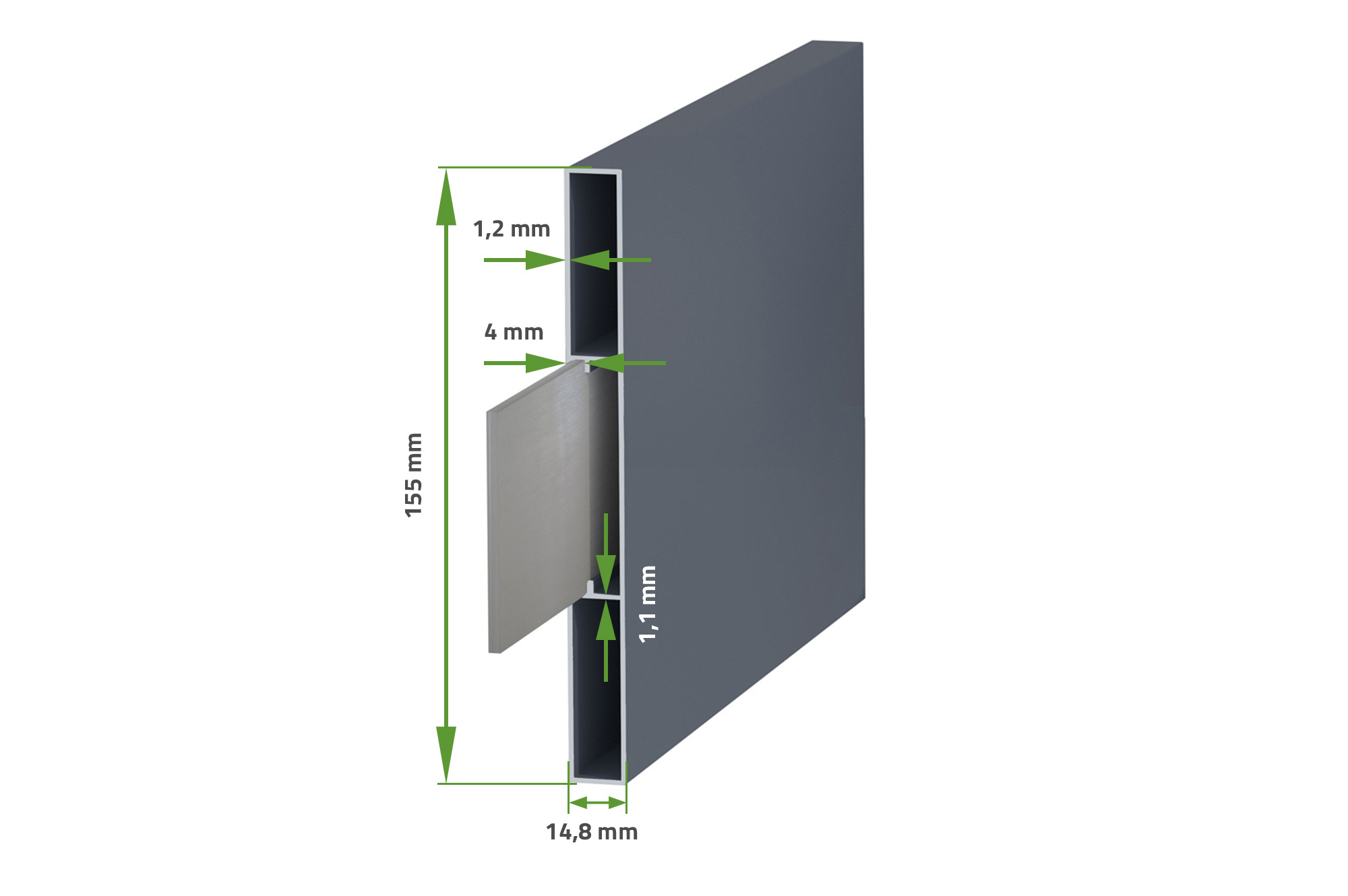

2 reinforced slats to position according to your constraints to motorize your gate.

Accessories included :
-2 upper hinges mounted on ball bearings
-2 lower hinges
-1 cylinder lock
-5 keys
-1 automatic central stop
-2 reception stops
-screws and bolts
Posts not included. Minimum height of the pillars 140 cm.

Delivered in kit. Clear instructions, easy and quick assembly.
Width 392cm height 122cm.
Find all the characteristics in the technical sheet.


Aluminium Post H.166cm EIFEL 15x15cm for gate

The EIFEL 166cm posts are made of aluminium. They can be used to install a swing gate, a wicket gate or a sliding gate.

For Casanoov gates up to 140cm high

The section of the post is 15 x 15 cm.

The fixing plate is to be screwed. Its dimensions are 20 x 20 cm. Its thickness is 1cm.


The aluminium post is powder-coated anthracite grey (RAL 7016). It is supplied with a cap.
It is advisable to concrete and reinforce the post in order to consolidate it when the weight of the gate exceeds 80kg (see technical diagram).

This type of aluminium post is suitable for all Casanoov gates with a height of 140 cm.


Technical drawings

Aluminium swing gate 4m VOGEL 400B120 GREY

537_technical_drawing

Aluminium swing gate 4m VOGEL 400B120 GREY

537_technical_drawing

Aluminium Post H.166cm EIFEL 15x15cm for gate

257_technical_drawing

Assembly instructions

product_download_assembly-instructions_button Assembly instructions - KIT-000109

product_download_assembly-instructions_button Assembly instructions - STW-000009
