Looking for the perfect balance between design and privacy? The CIMONE double-leaf gate meets your expectations.

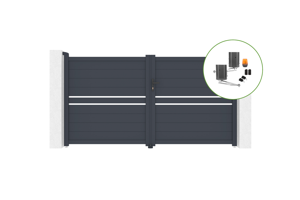

Discover the CIMONE aluminum swing gate, distinguished by its modern and sleek design, marked by two openwork horizontal bands. These discreet lines add a touch of lightness that allows you to remain open and maintain some natural light. Perfect for those seeking a balance between contemporary aesthetics and privacy, this double-leaf gate adapts to any type of exterior.
Swing Gate: The ideal solution for a spacious and secure entrance
With its classic double-leaf opening, the swing gate combines elegance and practicality. Ideal for spacious entrances, it offers easy access while adding a touch of style to your exterior. Robust and durable, it withstands harsh weather conditions, ensuring a long lifespan. Easy to maintain, it is a reliable and attractive solution for securing your property. If you choose a double-leaf gate motor, this will further increase its ease of use, making it easier to open and close your electric swing gate on a daily basis.
This swing gate has a wind resistance of 55 km/h.
Material: Aluminum Color: Anthracite Gray - RAL 7016 Dimensions: Width 300 cm x Height 158 cm Required width between posts: 305 cm Minimum post height: 175 cm
Aluminum withstands temperature changes very well, whether hot or cold. It doesn't warp and remains in excellent condition, even after years of use. This robust material is made to last while maintaining its beautiful appearance. With aluminum, you're simply choosing a reliable solution suitable for all conditions.
Need posts?
Posts are not included in our kits, as they are not necessary if you already have exterior pillars or posts for installing your product. If you need pillars, we offer promotional packs that include the product of your choice with two suitable posts. The minimum height of the pillars for this swing gate is 175 cm.
How to maintain your aluminum product?
Aluminum requires very little maintenance. To preserve its shine and durability, clean it once or twice a year with warm, soapy water and a soft cloth. Rinse and dry thoroughly, and avoid abrasive products or high-pressure cleaning, which could damage the powder coating.
Need help choosing your swing gate? Contact our customer service via our online form.
The BUNKER B500 articulated arm operator is ideal for motorizing swing gates up to 6 meters long and weighing up to 500 kg (i.e., 3 meters and 250 kg maximum per leaf).
Specially designed for swing gates, this articulated arm operator will allow you to motorize any type of swing gate, whether new or existing, made of iron, aluminum, PVC, or wood.
Comprising two motorized, articulated arms, each designed to motorize one leaf of your gate, the BUNKER B500 operator offers the unique advantage of achieving a natural movement, very similar to manual opening thanks to its articulated arm mechanism.
Supplied with clear and detailed installation instructions, you can motorize your gate quickly and easily! Our installation instructions have been designed to guide you step by step through the proper operation of your gate operator, using clear instructions accompanied by illustrations to facilitate your understanding. If you need anything or encounter any difficulties, our Casanoov technical team is here to assist you.
This kit includes: - 2 motors with an electrical voltage of 24 Volts/160 Watts - A central gate stop - 2 pairs of articulated arms - 2 4-button remote controls with protective cover (Batteries included) - 1 LED flashing light - 1 pair of photocells - Screws for mounting on posts/pillars
Accessories not included with the BUNKER B500 motor:
Screws to secure the motor to the gate. These screws must be adapted to each type of gate and chosen according to the thickness of your gate. For Casanoov swing gates, we recommend securing your motor arms with Rivkle blind rivets between 8 and 12 mm long. The mounting bracket must be positioned on the reinforced slats provided for this purpose on all our swing gates and wickets.
The stop must be used if you have a tilt stop for manual gates. When you motorize your swing gate, you must ensure that the central stop does not hold it back. Your motor will lock and secure your swing gate.
BUNKER B500 Features:
- Opens inward and outward - Opening angle between 90° and 110° - The opening angle is determined by your installation requirements. (You will find all the installation instructions in the instructions, which can be downloaded freely from the product page) - Manual motor release in the event of a power outage - Arm opening speed: 1.5 cm/second - Maximum operating time: 5 minutes - Internal rotation speed: 54 RPM (Revolutions per minute) - Opening performance can vary using the soft opening and closing mode - The opening and closing speed, as well as the drive power, can be adjusted to 20 different positions - After opening, the gate can close automatically according to your chosen time interval, ranging from 0 to 99 seconds - Pedestrian mode: You can choose to open only one of the two leaves - Rain protection class: IP 55 - Weight of each motor: 29.7 kg - Operating temperature: -45°C to +50°C - Thrust force: 6300 N to 6500 N - Electrical connection power Between your home and the motor: 220VAC ±10% - Auto-stop function: If your gate encounters an obstacle, the gate automatically stops opening or closing.
You can add external accessories with a 24V operating power, such as a backup battery, magnetic or electric lock, or push button.
This swing gate motorization kit is delivered as a kit. Clear instructions, quick and easy installation. Find all the necessary information about this product in the technical specifications.
If you have any difficulties or questions during the installation of your automatic gate system, our Casanoov technical team is here to assist you!
Assembly instructions - KIT-000508
