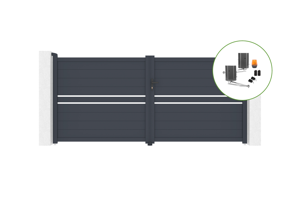

Ideal for closing your property while leaving a passage for pedestrians, discover our CIMONE aluminum swing gate, the perfect compromise for securing your …
Ideal for closing your property while leaving a passage for pedestrians, discover our CIMONE aluminum swing gate, the perfect compromise for securing your home without making the appearance of your exterior heavier.
Its full aluminum design makes this double swing gate an ideal model for protecting your property from prying eyes and thus benefiting from the greatest privacy. However, its few horizontal openwork spaces allow you to not be completely cut off from the outside and thus be able to keep some light and visibility to the outside.
The 3.5m CIMONE swing gate offers an ideal solution, combining security, durability and originality for the entrance to your property. Its exclusive design combines elegance and modernity.
Designed in aluminum, a material recognized for its many advantages, the CIMONE swing gate is a sustainable choice because it combines lightness, longevity and minimal maintenance. Indeed, aluminum is a material renowned for its anti-corrosion capabilities, its resistance to rust and shock as well as its ease of maintenance and its robustness. Thanks to its powder-coated finish, you are even more assured of its long-term longevity
Installing the CIMONE gate is disconcertingly easy thanks to its ingenious design and its intuitive assembly manual, including all the necessary accessories.
Adopt the CIMONE swing gate and bring a subtle touch of originality to your property!
Description: Designer semi-openwork swing gate Material: Aluminum Color: Anthracite gray (RAL 7016) Dimensions: Width 350 cm x Height 158 cm Width required between pillars: 355 cm Minimum height of pillars: 175 cm
Save now by exploring the packs associated with this item! All promotional packs associated with this gate are accessible in the “Promotional Pack” tab of this product sheet.
Need posts? If your installation requires posts, we offer promotional packs including the aluminum gate of your choice accompanied by two aluminum posts adapted to the chosen garden gate.
The CIMONE gate is also available in height 1m40. Are you attracted by the CIMONE range? Don't miss out on discovering the matching sliding gates and gates to create a harmonious exterior.
Garden gate delivered as a kit. Clear instructions, quick and easy assembly. Find all the necessary information about this product in the technical characteristics.
The BUNKER B500 articulated arm operator is ideal for motorizing swing gates up to 6 meters long and weighing up to 500 kg (i.e., 3 meters and 250 kg maximum per leaf).
Specially designed for swing gates, this articulated arm operator will allow you to motorize any type of swing gate, whether new or existing, made of iron, aluminum, PVC, or wood.
Comprising two motorized, articulated arms, each designed to motorize one leaf of your gate, the BUNKER B500 operator offers the unique advantage of achieving a natural movement, very close to manual opening thanks to its articulated arm mechanism.
Comes with clear and detailed installation instructions, you can motorize your gate quickly and easily! Our installation instructions have been designed to guide you step by step through the proper operation of your automation system, using clear instructions accompanied by illustrations to facilitate your understanding.
If you need assistance or encounter any difficulties, our Casanoov technical team is here to assist you.
This motorization kit includes:
- 2 motors with an electrical voltage of 24 Volts/160 Watts - A central gate stop This stop is to be used if you have a tilting stop for a manual gate. When you motorize your swing gate, you must ensure that the central stop does not hold it back.
Your motorization will lock and secure your swing gate. - 2 pairs of articulated arms - 2 4-button remote controls with protective cover (Batteries included) - 1 LED flashing light - 1 pair of photocells - Screws for mounting on posts/pillars
Accessories not included with the BUNKER B500 motor:
Screws for attaching the motor to the gate. These screws must be adapted to each gate type and chosen according to the thickness of your gate. For Casanoov swing gates, we recommend attaching your motor arms with Rivkle blind rivets between 8 and 12 mm long. The mounting bracket must be positioned on the reinforced slats provided for this purpose on all our swing gates and wickets.
BUNKER B500 Features:
- Inward and outward opening - Opening angle between 90° and 110° - The opening angle is determined by your installation requirements. (You will find all the installation instructions in the instructions, which can be downloaded freely from the product page) - Manual motor release in the event of a power outage - Arm opening speed: 1.5 cm/second - Maximum operating time: 5 minutes - Internal rotation speed: 54 RPM (Revolutions per minute) - Opening performance can vary using the soft opening and closing mode - The opening and closing speed, as well as the drive power, can be adjusted to 20 different positions - After opening, the gate can close automatically according to your chosen time interval, ranging from 0 to 99 seconds - Pedestrian mode: You can choose to open only one of the two leaves - Rain protection class: IP 55 - Weight of each motor: 29.7 kg - Operating temperature: -45°C to +50°C - Thrust force: 6300 N at 6500N - Electrical connection power between your home and the motor: 220VAC ±10% - Auto-stop function: If your gate encounters an obstacle, the gate automatically stops opening or closing.
You can add external accessories with a 24V operating power, such as a backup battery, magnetic or electric lock, or push button.
This swing gate motorization kit is delivered as a kit. Clear instructions, quick and easy installation. Find all the necessary information about this product in the technical specifications.
If you have any difficulties or questions during the installation of your automatic gate system, our Casanoov technical team is here to assist you!
Welcome to Casanoov! Specializing in the online sale of equipment dedicated to the home environment, Casanoov makes it a point of honor to offer you a complete offer to delimit your exterior according to the latest market trends at affordable prices. Ultra competitive prices. Quality at the right price! This is Casanoov's motto. Discover our wide range of aluminum swing gates, sliding gates, gates and fences, the latest trend in terms of material. All our products have been thought out and designed in kit form. Easy and quick to install, assembling your Casanoov gates and fences yourself will be child's play. All our models have been designed to combine both safety and aesthetics. Casanoov offers you offers the choice to meet all your desires and requirements: classic models with full filling, semi-perforated, perforated or ultra perforated (barred) or more modern with our design models. At Casanoov, everything is done to satisfy you! Our design models are inspired and designed in France, they are available in 6 variations and each has unique decorative plates, designed by us for you. Choose the range that best suits you for a modern exterior that suits you. And for an even more modern exterior, think about automating your entrance and browse our category of motorization which offers you automations for swing and sliding gates adapted to your needs. Also discover all our accessories for a harmonious exterior, such as our aluminum posts in colors matching our gates, gates and garden fences. To make your choice easier, you have all the technical information as well as visuals in situation on all of our product sheets. Payments are secure and delivery is free. Enjoy and happy shopping!
Assembly instructions - KIT-000512
