- This automated gate kit includes :
- Swing gate LIFE grey aluminium
- Width 355cm and Height 145cm
- Worm gear motor (Up to 400kg)
Automatic swing gate 3,5m LIFE H.140cm + motor HICKER B200
PAC-001211
1649 €
- This automated gate kit includes :
- Swing gate LIFE grey aluminium
- Width 355cm and Height 145cm
- Worm gear motor (Up to 400kg)
Secure payment
Delivery within 5 days
Free shipping
Automatic swing gate 3,5m LIFE H.140cm + motor HICKER B200
1649 €
-5%
between 0 € and 1499.99 €*
-7%
between 1500 € and 2999.99 €*
-10%
greater than 3000 €*
*HT orders
Description

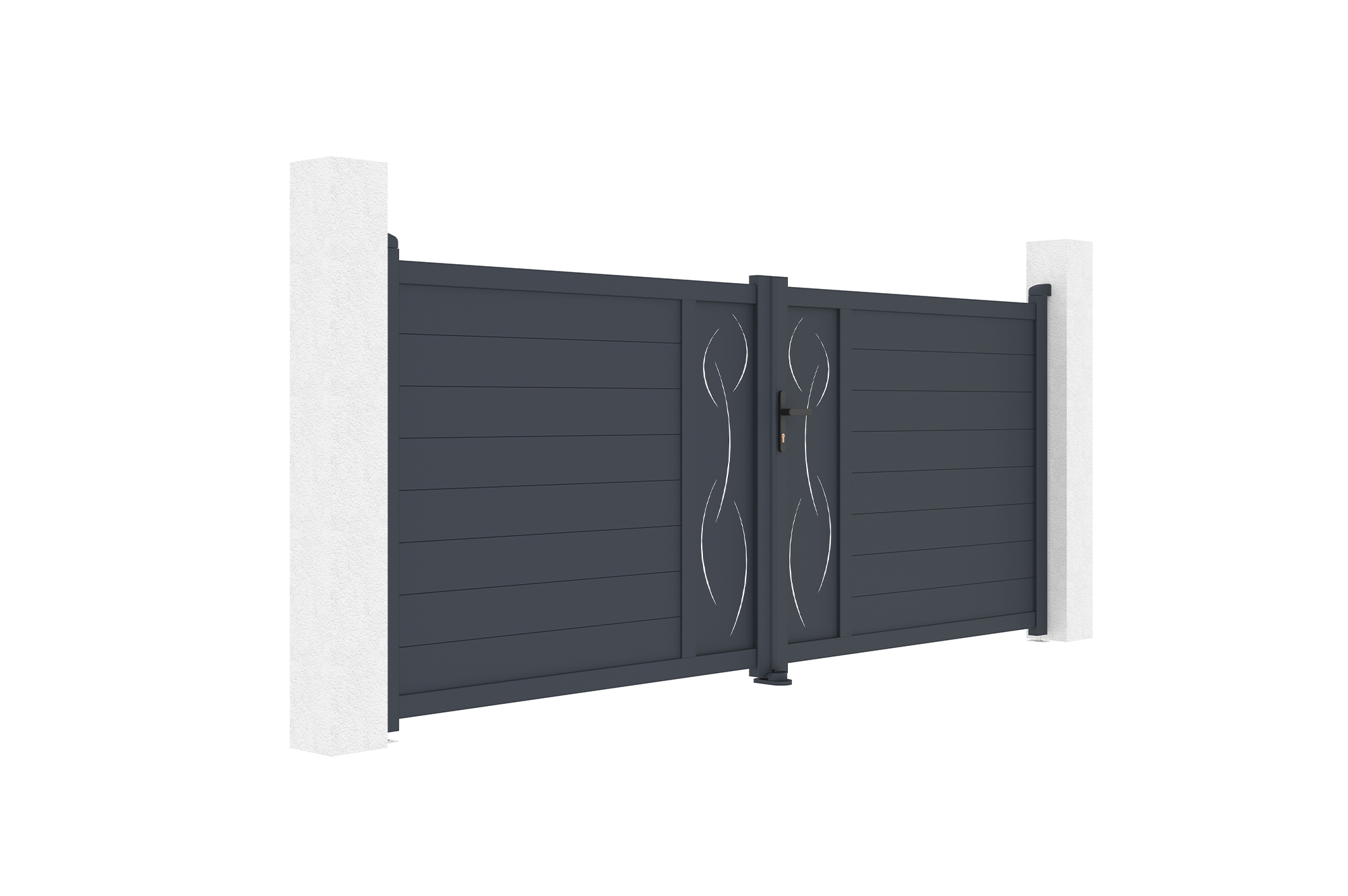

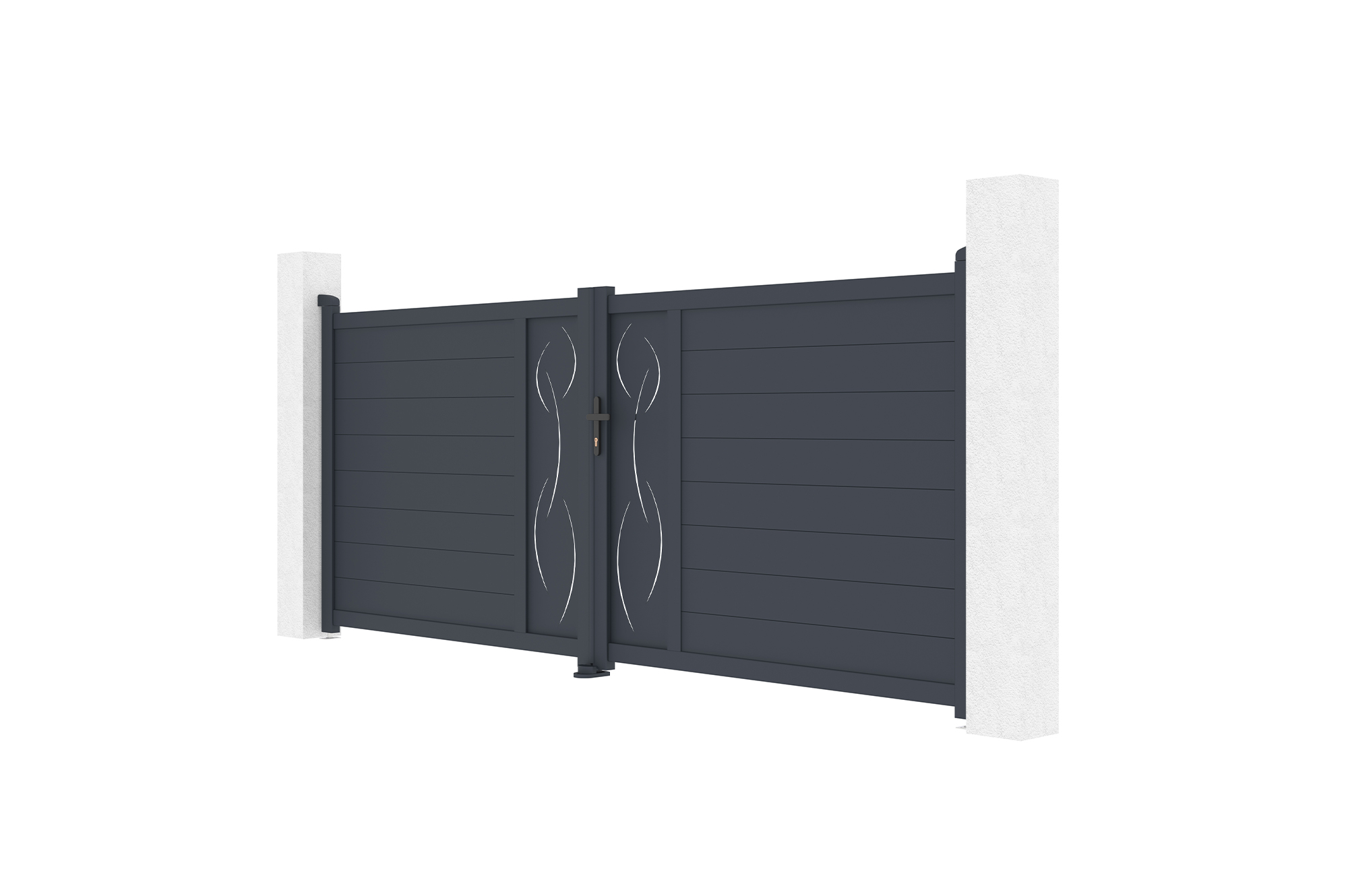

Swing gate 3,5m LIFE H.140cm grey aluminium
Looking for a modern and unique swing gate? The LIFE range is for you.
Discover the LIFE designer gate, adorned with arch motifs that add an elegant and fluid touch to the overall look. These refined curves, inspired by arches, create a harmonious design while …
Swing gate automation HICKER B200
The HICKER B200 worm gear motor is ideal for motorizing swing gates up to 6 meters long and weighing up to 400 kg (i.e., 3 meters and 200 kg maximum per leaf).
Specifically designed for swing gates, this automatic system will allow you to motorize …
Swing gate 3,5m LIFE H.140cm grey aluminium
Looking for a modern and unique swing gate? The LIFE range is for you.
Discover the LIFE designer gate, adorned with arch motifs that add an elegant and fluid touch to the overall look. These refined curves, inspired by arches, create a harmonious design while preserving the privacy of your exterior. This designer swing gate combines modernity and simplicity, blending stylishly into any environment, for optimal protection without compromising on aesthetics.
Swing Gate: The ideal solution for a spacious and secure entrance
With its classic two-leaf opening, the swing gate combines elegance and practicality. Ideal for spacious entrances, it offers easy access while adding a touch of style to your exterior. Robust and durable, it withstands harsh weather conditions, ensuring a long lifespan. Easy to maintain, it is a reliable and attractive solution for securing your property. If you choose a double-leaf gate motor, this will further increase its ease of use, making it easier to open and close your electric swing gate on a daily basis.
This swing gate has a wind resistance of 55 km/h.
Material: Aluminum
Color: Anthracite Gray - RAL 7016
Pattern: "LIFE"
Dimensions: Width 350 cm x Height 145 cm
Compatible space between posts: 351.5 cm to 357.5 cm
Minimum post height: 160 cm
Inspired and designed in France
This kit contains:
- 14 aluminum slats (height 16 cm)
- 2 reinforced aluminum slats for motorization (height 16 cm)
- 2 decorative aluminum plates with "LIFE" motif (thickness 20/100)
- 2 upper hinges mounted on ball bearings
- 2 lower hinges
- 1 automatic center stop
- 2 receiving stops
- 1 cylinder lock
- 1 handle (black)
- 5 keys
- Finishing caps
- Screws
About the Material
Aluminum withstands temperature changes very well, whether hot or cold. It doesn't warp and remains in excellent condition, even after years of use. This robust material is made to last while maintaining its beautiful appearance. With aluminum, you're choosing a reliable solution suitable for all conditions, quite simply.
Need posts?
Posts are not included in our kits, as they are not necessary if you already have exterior pillars or posts for installing your product.
If you need pillars, we offer promotional packs that include the product of your choice with two suitable posts.
The minimum height of pillars for this swing gate is 160 cm.
How to maintain your aluminum structure?
Aluminum requires little maintenance, but regular cleaning extends its lifespan. Once or twice a year, simply use warm soapy water and a soft cloth, then rinse and dry thoroughly. Avoid abrasive products and high-pressure cleaning, which could damage the lacquer.
Need help choosing your swing gate?
Contact our customer service via our online form.
Product delivered in kit form
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsSwing gate automation HICKER B200
The HICKER B200 worm gear motor is ideal for motorizing swing gates up to 6 meters long and weighing up to 400 kg (i.e., 3 meters and 200 kg maximum per leaf).
Specifically designed for swing gates, this automatic system will allow you to motorize any type of swing gate, whether new or existing, made of iron, aluminum, PVC, or wood.
Its compact and therefore space-saving design allows you to enjoy an easy-to-use electric gate without compromising the aesthetics of your gate or detracting from your exterior.
This motor consists of two worm gear motor arms, each designed to motorize each leaf of your gate.
The HICKER B200 worm gear motor consists of two components: a worm gear (a helix-shaped threaded rod) and a toothed wheel, also called a worm wheel. As the worm gear turns, its threads come into contact with the teeth of the gear wheel, creating a rotary motion and allowing your swing gate to open or close.
Comes with clear and detailed installation instructions, you can motorize your gate quickly and easily!
If you need help or encounter any difficulties, our Casanoov technical team is here to assist you.
This kit contains:
- 2 motors with an electrical voltage of 24 Volts / 60 Watts
- A control box
- A central gate stop
- 2 post mounting brackets allowing for multiple opening angle configurations.
- 2 mounting brackets to attach your motor to your swing gate.
- 2 4-button remote controls with protective cover (batteries included)
- A set of screws to attach your motor to your posts, the control box, and the shoe.
Accessories not included with the B200 motor:
- LED flashing light (Available in our "Motor Accessories" category)
- Photocells (Available in our "Motor Accessories" category)
These screws must be adapted to each gate type and chosen according to the thickness of your gate.
For Casanoov Swing gates, we recommend securing your motor arms with Rivkle blind rivets between 8 and 12 mm long. The mounting bracket must be positioned on the reinforced slats provided for this purpose on all our swing gates and wickets.
Features of the HICKER B200 motor:
- Inward and outward opening
- Opening angle between 90° and 110°
- The opening angle is determined by your installation requirements. (You'll find all the installation instructions in the free downloadable instructions on the product page)
- Manual motor release in case of power outage
- Product length: 89.7 cm
- Arm opening speed: 2.4 cm/second
- Continuous operating time: 5 minutes
- Internal rotation speed: 400 RPM (Revolutions per minute), twice as fast as the B150 model! - Opening performance can vary using the soft opening and closing mode.
- The opening and closing speed, as well as the drive power, can be adjusted to 20 different positions.
- After opening, the gate can close automatically according to your chosen time interval, ranging from 0 to 99 seconds.
- Pedestrian mode: You can choose to open only one of the two leaves.
- Rain protection class: IP 55.
- Weight of each motor: 17.5 kg.
- Operating temperature: -20°C to +50°C.
- Electrical connection between your home and the motor: 220VAC ±10%.
- Auto-stop function: If your gate encounters an obstacle, the gate automatically stops opening or closing.
You can combine external accessories with a 24V operating power, such as a photocell, flashing light, backup battery, magnetic or electric lock, or push button.
The stopper should be used if you have a tilting stop for a manual gate. When you motorize your swing gate, you must ensure that the central stop does not hold it back. It is your motorization that will lock and secure your swing gate.
Installation Tips:
Always check that your installation distances are included in the installation table. Installation distances determine the opening angle of your gate.
Worm gear motors have start and end stops. Once your motorization is installed, manually operate your gate to locate the travel ranges of your arm and position the stops accordingly.
Our Casanoov technical team is here to assist you.
For this product
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsTechnical data
-
Blade section
160*15 mm
-
RAL
7016
-
Eligibility Extended warranty 5 years
No
-
Stud thickness
1.5 mm
-
Top cover cap
Yes
-
Width
350 cm
-
Assembly instructions
Yes
-
Pivoting system
Ball bearing
-
Opening system
Swing gate
-
Pattern / Design
LIFE
-
Finishing
Powder coating
-
Compatible motorization type
With articulated arm and jacks
-
Rod assembly
Self-drilling screws
-
Compatible engines
Yes
-
Eligibility Extension of warranty 10 years
No
-
Thickness of the blades
1.2 mm
-
Assembly time
8 h
-
Width between pillars
355 cm
-
Sleeper thickness
1.3 mm
-
Type of lock
Keys (5)
-
Sleeper Section
70*30 mm
-
Locking system
Cylinder lock
-
Amounts Section
78*47 mm
-
Stud/rail assembly
Self-drilling screws
-
Number of upper hinges
2
-
Supplied accessories
Yes
-
Warranty
2 an(s)
-
Type of filling
half openworked
-
Available in sliding
Yes
-
Central stop
Yes
-
Handle colour
Black
-
Compatible pillar spacing
351,5 - 357,5 cm
-
Minimum pillar height
160 cm
-
End stop
2
-
Operating clearance
30 mm
-
Number of lower hinges
2
-
Opening direction
Towards the house, See Technical drawing
-
Frame material
Aluminium
-
Colour
Charcoal grey
-
Height
145 cm
-
Wind resistance
55 km/h
-
Main material
Aluminium
-
Recommended number of persons for assembly
2
-
Handle material
Aluminium
-
Housing size
25,5 x 18 x 8 cm
-
Type of mechanism
Endless screw
-
Compatible for portals
Aluminium, pvc, wood, iron
-
Power
24V V
-
Supply voltage
220VAC±10%/110VAC±10%
-
Power consumption
60W W
-
Nominal operating thrust
1090 Nm
-
Maximum thrust
1090 Nm
-
Arm rotation speed in revolutions per minute
300 rpm tr/min
-
Arm speed in centimeters per second
2,4 cm/s
-
Opening time
About 17 seconds
-
Maximum size per fan
3 m
-
Maximum weight per fan
200 kg
-
Gate weight up to
400 kg
-
Engine rain protection
IP55
-
Operating temperature
-20°C to +50°C
-
Minimum opening angle
90 °
-
Maximum opening angle
110 °
-
Length of the closed arm
89,7 cm
-
Length of open arm
89,7 cm
-
Manual release
Yes
-
Automatically programmable closing after opening
Yes
-
Gradual opening / closing
Yes
-
Adjustment of the opening and closing speed
Yes
-
Co-ownership mode
Yes
-
Obstacle detection
Yes
-
Partial pedestrian opening
Yes
-
Photocell Compatible
Yes
-
Flashing light compatible
Yes
-
External battery compatible
Yes
-
Keyboard compatible
Yes
-
Key lock compatible
Yes
-
Number of remote controls included
2
-
Number of remote control keys
4
-
Maximum number of associable remote controls
30
-
Electronic cabinet with electronic board
Includes
-
Pole mounting brackets included
Yes
-
Gate mounting brackets included
Yes
-
Mounting accessories included
Yes
-
Central gate stop included
Yes
-
Screws included
Yes
-
Infrared photocells included x2
No
-
LED flashing light included
No
-
Gross weight
17,5 kg
-
Assembly instructions
Yes
-
Assembly time
4 h
-
Recommended number of persons for assembly
2
-
Warranty
2 an(s)
-
Eligibility Extended warranty 5 years
No
-
Eligibility Extension of warranty 10 years
No
