Assembly time
8 h
RAL
7016
Frame material
Aluminium
Exists by beating
Yes
Finishing
Powder coating
Width between pillars
298 cm
Length of steel rail
6 m
Compatible motorization type
sliding
Handle material
Aluminium
Sleeper Section
70*30 mm
Assembly time
8 h
RAL
7016
Frame material
Aluminium
Exists by beating
Yes
Finishing
Powder coating
Width between pillars
298 cm
Length of steel rail
6 m
Compatible motorization type
sliding
Handle material
Aluminium
Sleeper Section
70*30 mm
Sleeper thickness
1,3 mm
Locking system
Cylinder lock
Rod assembly
Self-drilling screws
Stud/rail assembly
Self-drilling screws
Supplied accessories
Yes
Thickness of the blades
1,2 mm
Amounts Section
78*47 mm
Height
181 cm
Eligibility Extended warranty 5 years
No
Handle colour
Black
Recommended number of persons for assembly
2
Width
298 cm
Main material
Aluminium
Opening system
Sliding
Type of filling
half openworked
Blade width
155*15 mm
Stud thickness
1,5 mm
Required discharge length
3 m
Pattern / Design
LIFE
Warranty
2 ans
Color
Anthracite Grey
Required pillar height
190 cm
Length of the tail of the sliding gate
25 cm
Assembly instructions
Yes
Operating clearance
26 mm
Type of lock
4 Keys
Number of wheels
4
Compatible engines
Yes
Eligibility Extension of warranty 10 years
No
Opening direction
left to right / right to left
Guide system
Upper guide with 4 nylon olives
Weight of package No.1
7.0 kg
Weight of package No.2
22.0 kg
Weight of package No.3
25.0 kg
Weight of package No.4
12.5 kg

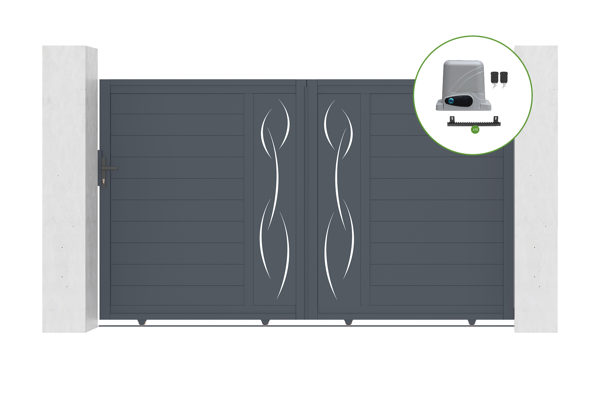

The LIFE sliding driveway gate with its graphic design will bring modernity and elegance to your entrance thanks to its unique decorative panels with their "LIFE" style patterns
Description : Modern sliding gate with vertical decorative panels
Material: Aluminium
Colour: Anthracite grey (RAL 7016)
Type of pattern : "LIFE"
Dimensions : Width 298 cm x Height 178 cm
Total width required with clearance : 648 cm
Minimum height of pillars: 190 cm
Inspired and designed in France
This do-it-yourself modern sliding gate kit with laser design contains ::
- 18 powder coated slats (Height 16 cm)
- 2 reinforced powder coated slats for motorisation (Height 16 cm)
- 2 decorative aluminium panels with "LIFE" pattern (Thickness 20/100)
- 1 top guide with 4 nylon wheels
- 6m aluminium guide rail
- 4 steel wheels
- 1 closes strike box
- 1 limit stop
- 1 sash lock
- 1 double handles (Black colour)
- Set of 5 keys
- Finishing caps
- Screws and bolts
If you wish to motorise your sliding gate, Casanoov suggests packs in the "Sliding Gate" category
You will find promotional packs offering you a set consisting of a sliding driveway gate of your choice accompanied by the appropriate automation.
In case your installation requires pillars, promotional packages are also available containing a sliding driveway gate of your choice, together with two aluminium posts to match the chosen entrance gate.
FYI : The minimum pillar height for this gate is 190cm
The LIFE model is also available in other sizes and colours.
For a harmonious exterior, we propose matching swing gates, garden gates and fences.
To personalize your sliding gate, you can change the direction or position of the decorative plates.
Driveway gate delivered in kit form.
Clear instructions, quick and easy assembly.
You will find all the necessary information about this product in the technical data.
It is technically possible to install your gate with an opening from the right to the left.
You will find all the information you need to change the opening direction in our installation instructions.
Our installation instructions for sliding gates have been designed to offer you two different installation methods depending on the chosen opening direction: from left to right or from right to left.
For further information, please contact our customer service via our contact form.
Welcome to Casanoov!
Specializing in the online sale of equipment dedicated to the home environment, Casanoov makes it a point of honor to offer you a complete offer to delimit your exterior according to the latest market trends at affordable prices. Ultra competitive prices.
Quality at the right price! This is Casanoov's motto.
Discover our wide range of aluminum swing gates, sliding gates, gates and fences, the latest trend in terms of material.
All our products have been thought out and designed in kit form.
Easy and quick to install, assembling your Casanoov gates and fences yourself will be child's play.
All our models have been designed to combine both safety and aesthetics.
Casanoov offers you offers the choice to meet all your desires and requirements: classic models with full filling, semi-perforated, perforated or ultra perforated (barred) or more modern with our design models. At Casanoov, everything is done to satisfy you!
Our design models are inspired and designed in France, they are available in 6 variations and each has unique decorative plates, designed by us for you.
Choose the range that best suits you for a modern exterior that suits you.
And for an even more modern exterior, think about automating your entrance and browse our category of motorization which offers you automations for swing and sliding gates adapted to your needs.
Also discover all our accessories for a harmonious exterior, such as our aluminum posts in colors matching our gates, gates and garden fences.
To make your choice easier, you have all the technical information as well as visuals in situation on all of our product sheets.
Payments are secure and delivery is free. Enjoy and happy shopping!
Download the assembly instructions (PDF)
