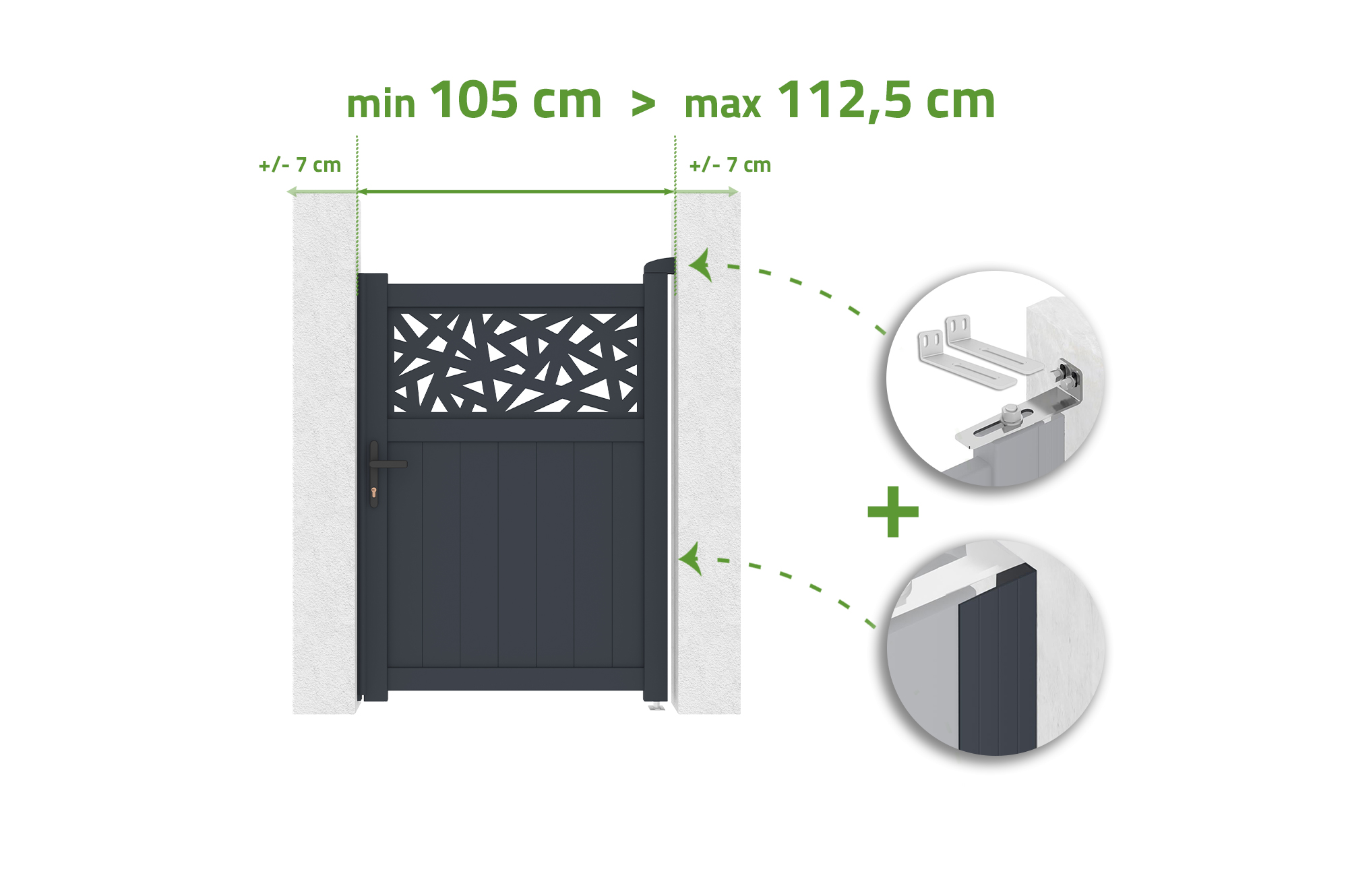

- Allows you to adapt the gate to your space
- Suitable for spaces from 104.8 cm to 112.3 cm
- 2 XL hinges for width adjustment
- 2 privacy panels to conceal the gap
Gate 1m adjustable in width DOLOMITE RUIVO H.140cm gray aluminum
PAC-003500
697 €
- Allows you to adapt the gate to your space
- Suitable for spaces from 104.8 cm to 112.3 cm
- 2 XL hinges for width adjustment
- 2 privacy panels to conceal the gap
Secure payment
Delivery within 5 days
Free shipping
Gate 1m adjustable in width DOLOMITE RUIVO H.140cm gray aluminum
697 €
-5%
between 0 € and 1499.99 €*
-7%
between 1500 € and 2999.99 €*
-10%
greater than 3000 €*
*HT orders
Description

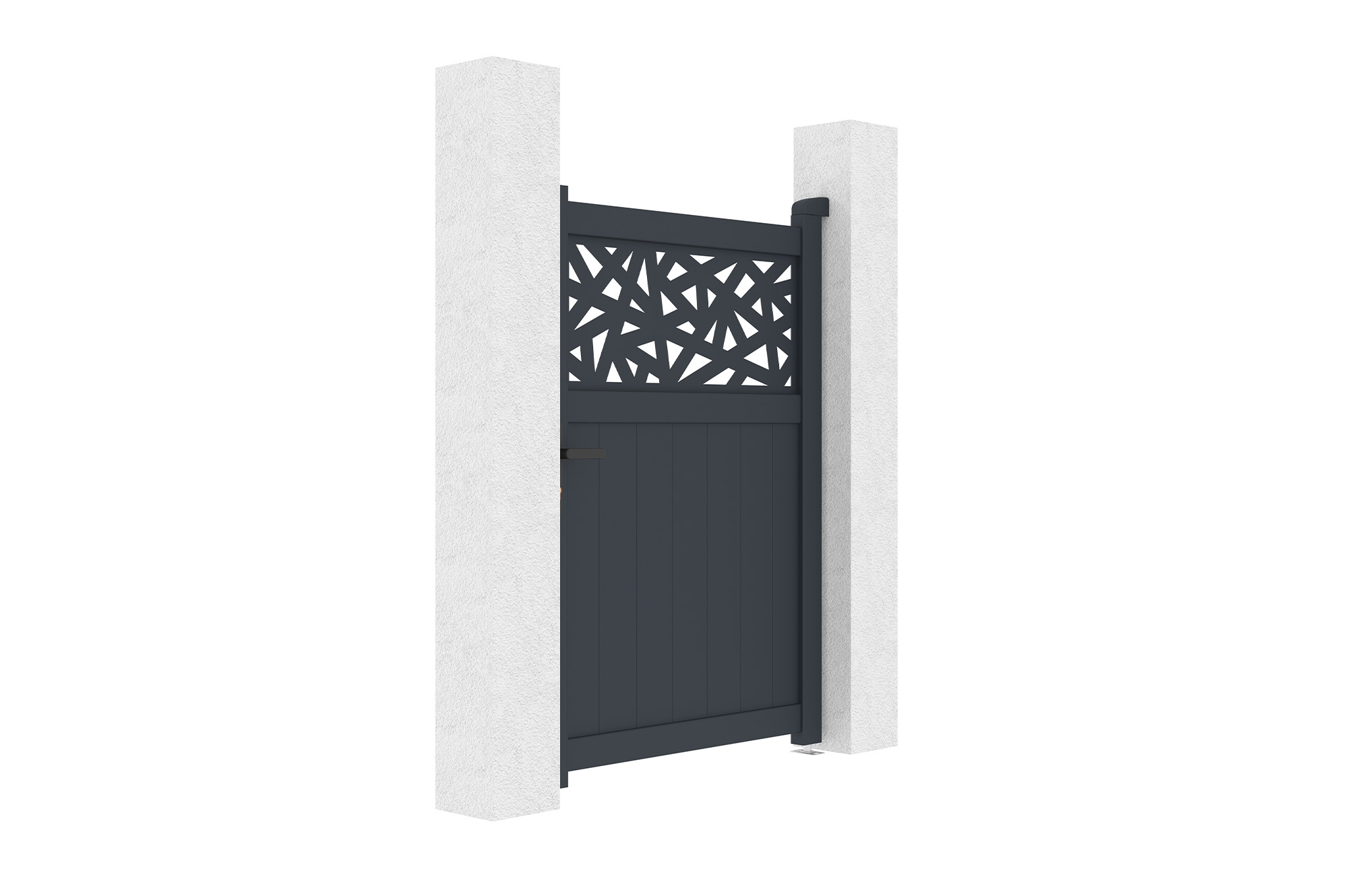

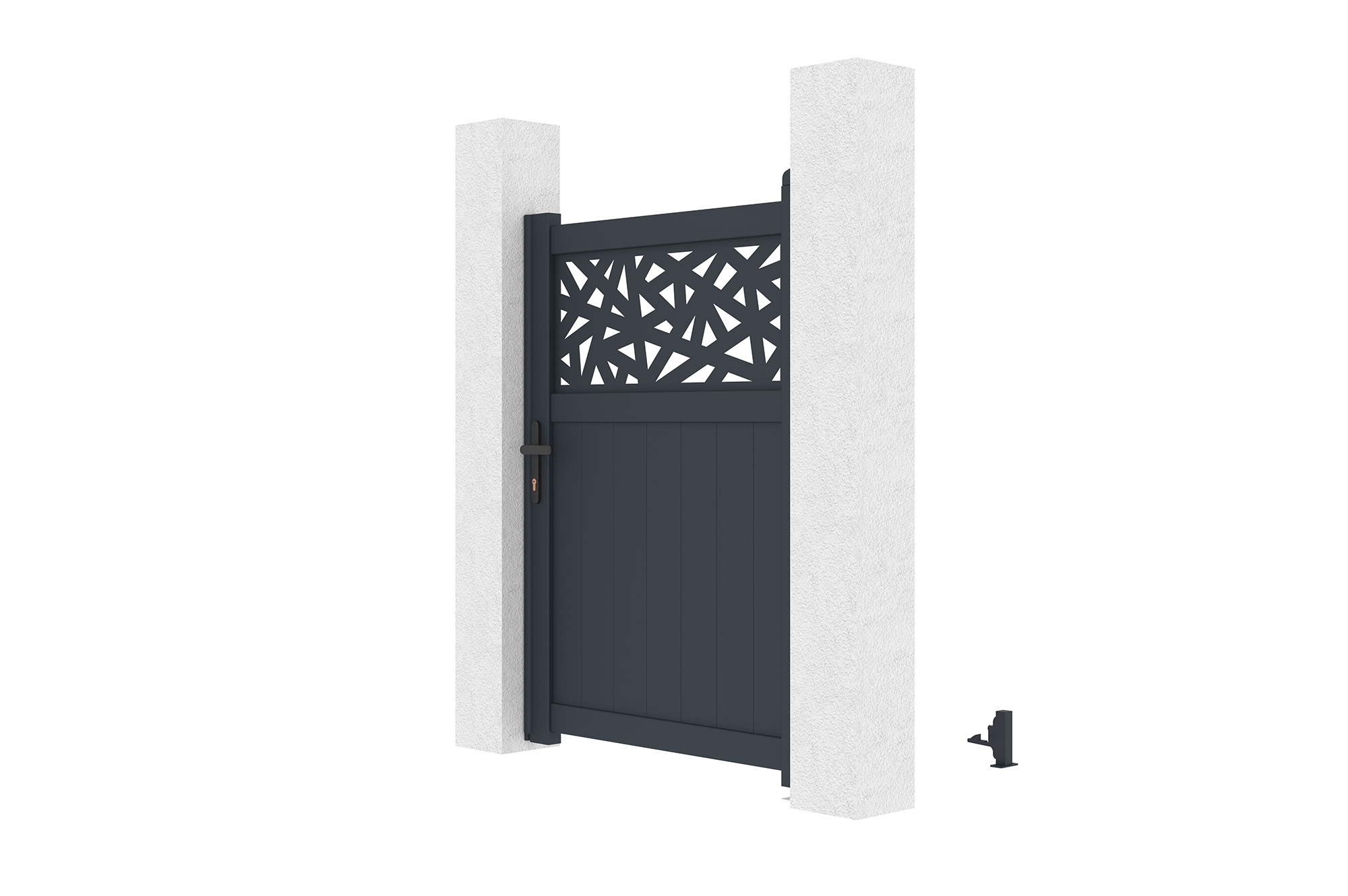

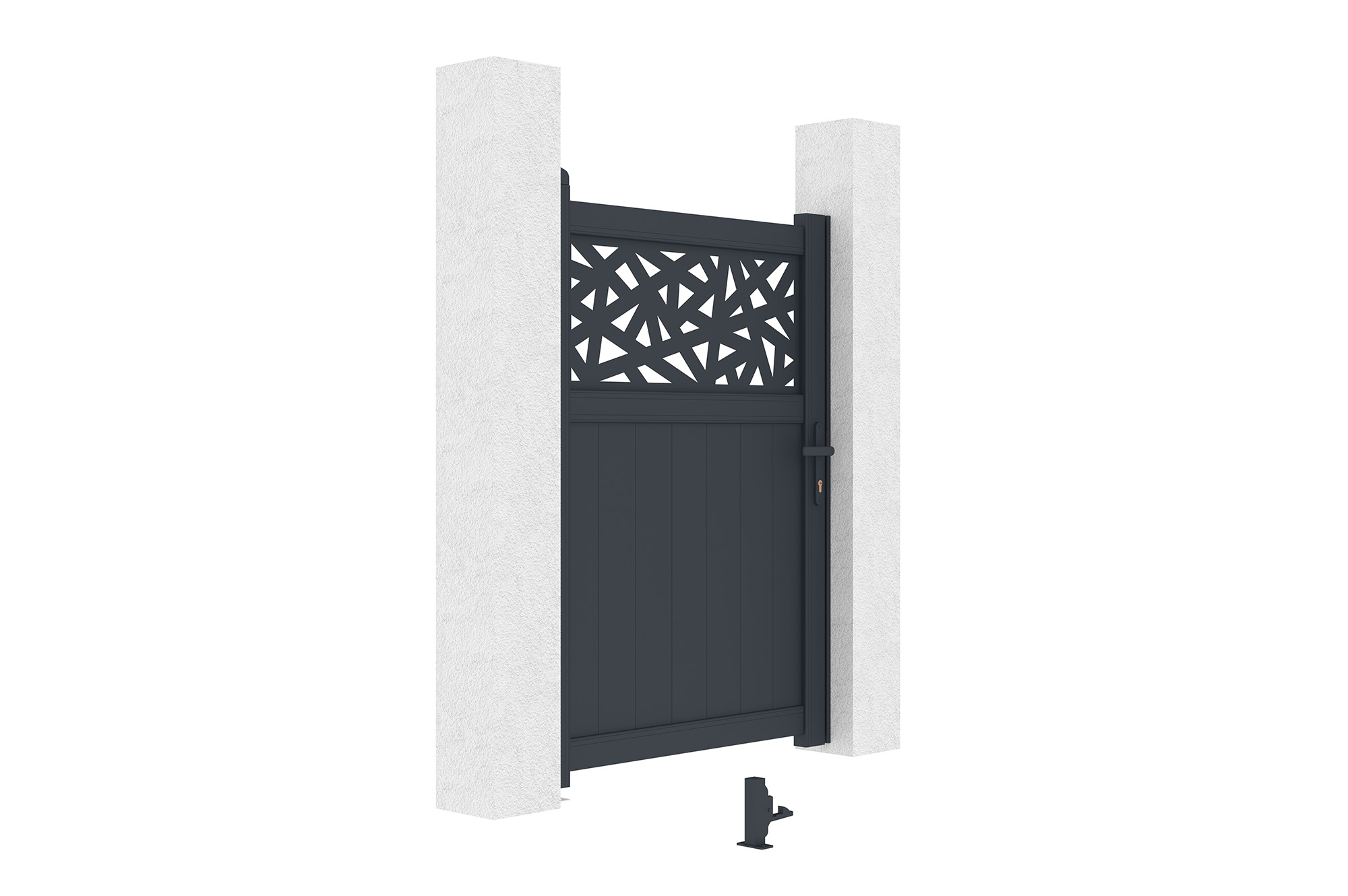

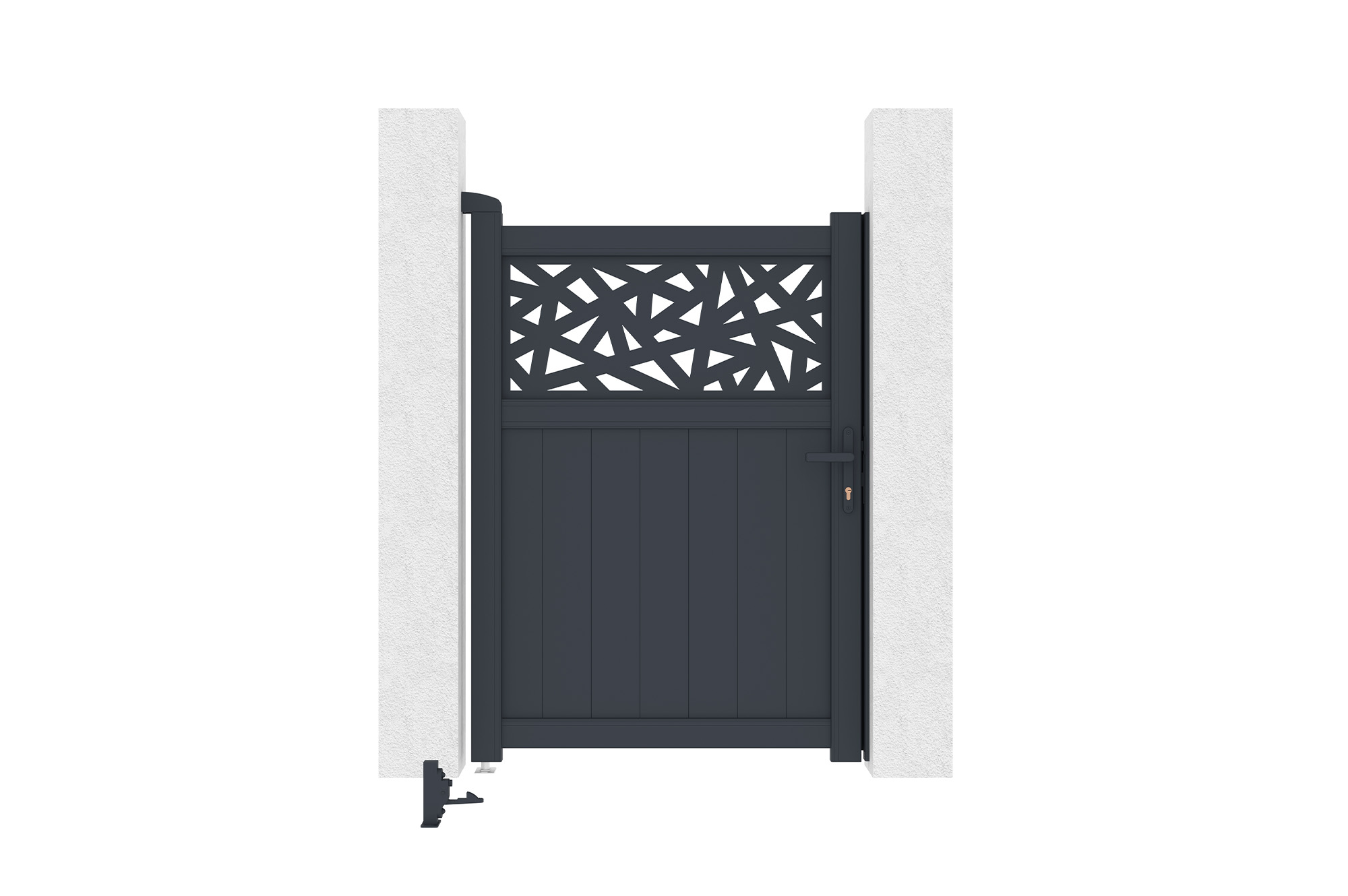

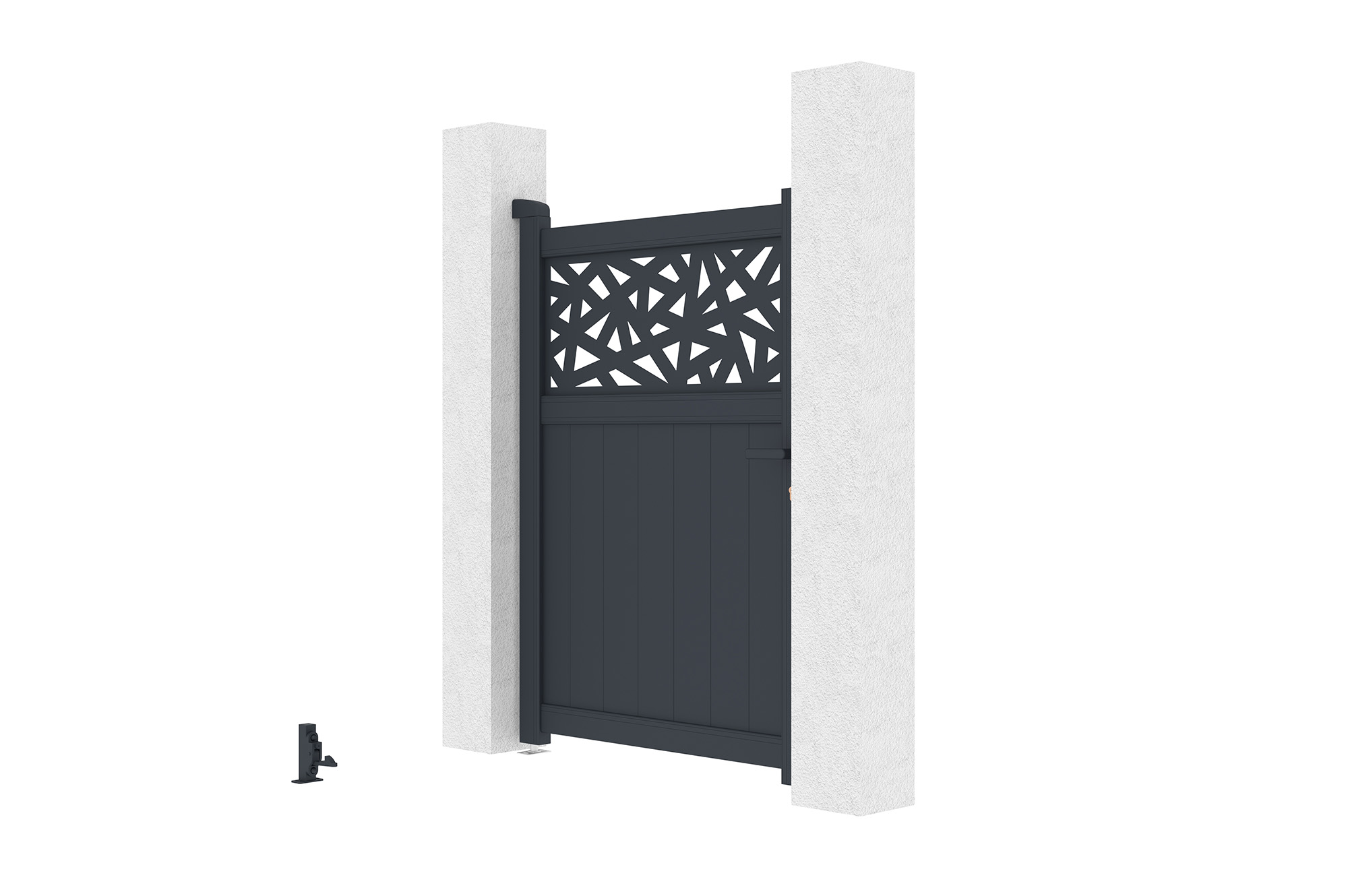

Gate 1m DOLOMITE RUIVO H.140cm gray aluminum
Add character to your entrance with the DOLOMITE RUIVO gate. Its horizontal decorative panel, adorned with geometric patterns, brings a modern, designer touch to your facade. The clean, structured lines of the RUIVO pattern create a striking visual effect while preserving your privacy. Made of …
Set of 2 XL-SWIVEL hinges for swing gate
Precisely adjust the installation of your gate
Thanks to their adjustable mounting brackets, these hinges can compensate for a gap of up to 75 mm between the gate/gate and the posts. This is an ideal solution for configurations where the available space does not match …
Set of 2 concealment profiles for swing gates
Fill the gap between the gate and the pillars
In some configurations, the gap between the gate and the pillars can be too large. This set of two finishing strips helps fill this gap and ensure a continuous and aesthetically pleasing closure. Used in conjunction …
Gate 1m DOLOMITE RUIVO H.140cm gray aluminum
Add character to your entrance with the DOLOMITE RUIVO gate. Its horizontal decorative panel, adorned with geometric patterns, brings a modern, designer touch to your facade. The clean, structured lines of the RUIVO pattern create a striking visual effect while preserving your privacy. Made of gray aluminum, it combines robustness and lightness for an elegant and durable result, requiring no maintenance.
Gate: Security and aesthetics for your property
The gate offers discreet and secure access for pedestrians, while also enhancing the security of your property. Its installation allows for easy control of entry and exit, which is particularly useful for those who frequently receive visitors or who want a dedicated access point. In addition to providing security, the gate adds an aesthetic and structured touch to your outdoor space.
This gate has a wind resistance of 55 km/h.
Material: Aluminum
Color: Anthracite Gray - RAL 7016
Pattern: Geometric

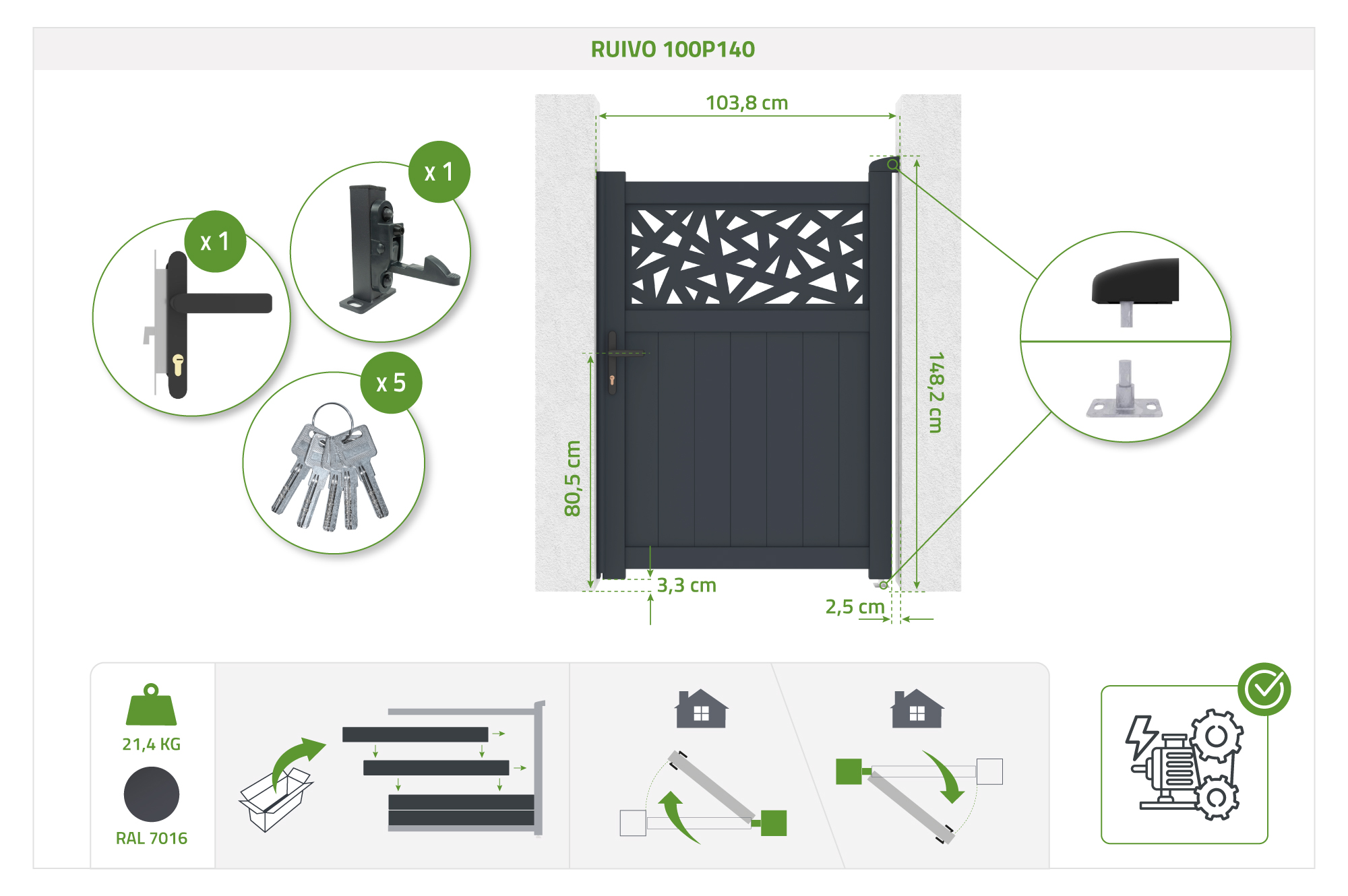

Dimensions: Width 99.5 cm x Height 140.1 cm
Required width between posts: 103.8 cm
Minimum post height: 160 cm
Inspired and designed in France
- 7 powder-coated slats (15.5 cm wide)
- 1 decorative aluminum plate with a geometric pattern (20/100 mm thick)
- 1 top hinge
- 1 bottom hinge
- 1 receiving stop
- 1 cylinder lock
- 1 handle (black)
- 5 keys
- Finishing caps
- Screws
About the Material
Aluminum is appealing due to its lightness and ease of handling, making it easy to install on all types of terrain. A modern material, it offers a wide range of designs and colors to harmonize with your exterior. Resistant to impacts and weather variations, it remains intact over time. By choosing aluminum, you benefit from a versatile, customizable, and durable solution to enhance your outdoor space.
The minimum height of the posts for this gate is 160 cm.
How to maintain your aluminum product?
Aluminum requires very little maintenance. To preserve its shine and durability, clean it once or twice a year with warm soapy water and a soft cloth. Rinse, dry thoroughly, and avoid abrasive products or high-pressure cleaning, which could damage the powder coating.
For this product
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsSet of 2 XL-SWIVEL hinges for swing gate
Precisely adjust the installation of your gate
Thanks to their adjustable mounting brackets, these hinges can compensate for a gap of up to 75 mm between the gate/gate and the posts. This is an ideal solution for configurations where the available space does not match the gate dimensions. Used with finishing strips, they neatly fill the remaining space, offering an effective alternative to custom-made solutions.
- 2 hinges
Technical specifications:
- Material: Galvanized steel, corrosion-resistant
- Dimensions: 170 x 45 x 43 mm
- Pivot pin diameter: 14.6 mm
- Mounting bracket thickness: 4 mm
- Operating clearance adjustment: up to 75 mm
- Hardware not included
- Compatibility: Casanoov swing gates and doors
For this product
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsSet of 2 concealment profiles for swing gates
Fill the gap between the gate and the pillars
In some configurations, the gap between the gate and the pillars can be too large. This set of two finishing strips helps fill this gap and ensure a continuous and aesthetically pleasing closure. Used in conjunction with adjustable XL hinges, they can compensate for the dimensions when the chosen gate is slightly smaller than the available opening.
- 2 aluminum corner brackets
- Dimensions: 1760 x 40 x 25 mm
- Thickness: 0.2 mm
- Material: Aluminum, lightweight and corrosion-resistant
For this product
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsTechnical data
-
Compatible pillar spacing
102,3 - 105,3 cm
-
Wind resistance
55 km/h
-
Main material
Aluminum
-
RAL
7016
-
Finishing
Powder coating
-
Type of filling
half openworked
-
Opening direction
See technical diagram
-
Operating clearance
15 mm
-
Compatible engines
Yes
-
Thickness of the blades
1.2 mm
-
Sleeper thickness
1.3 mm
-

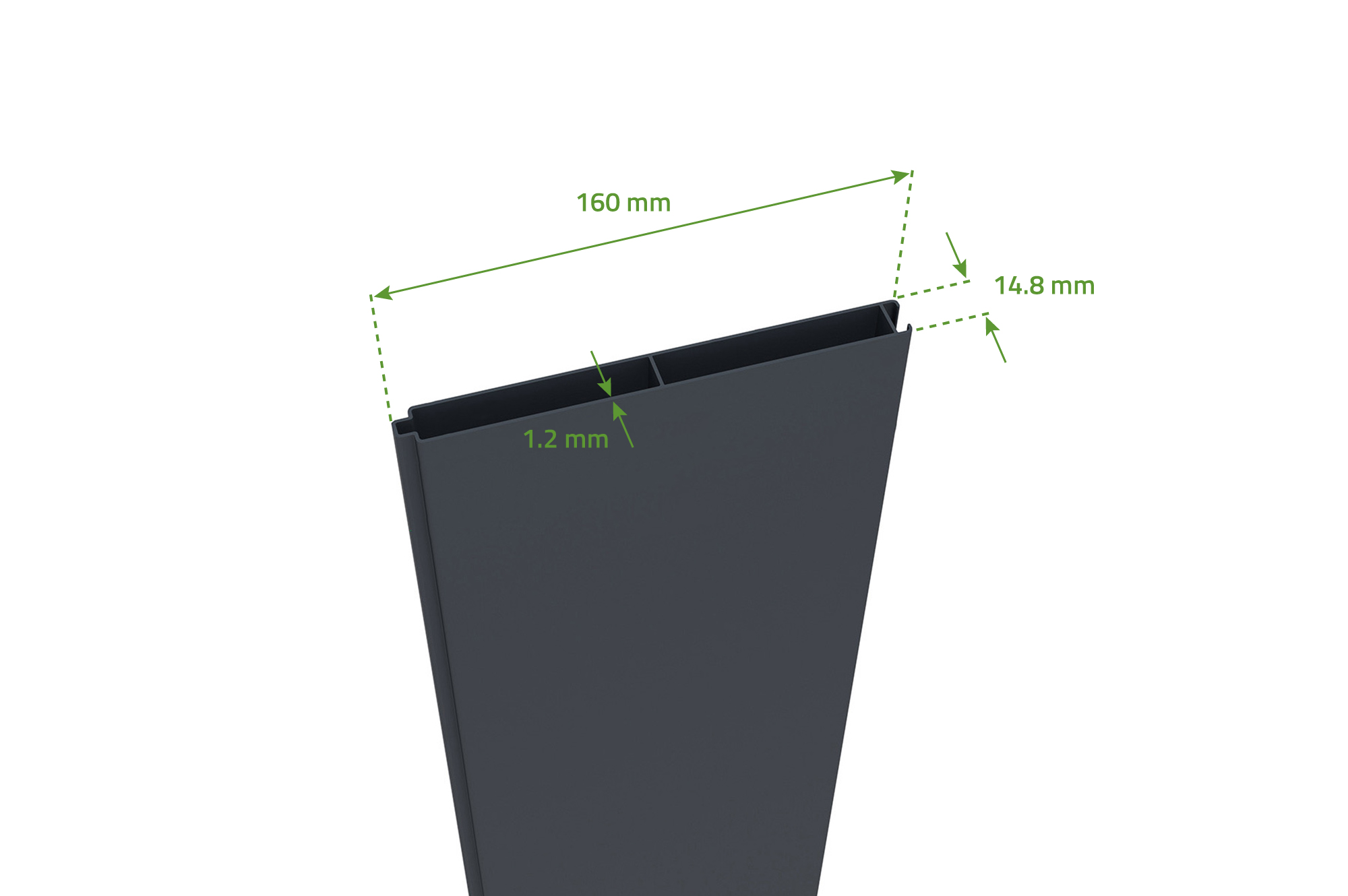

Blade section
160*15 mm
-

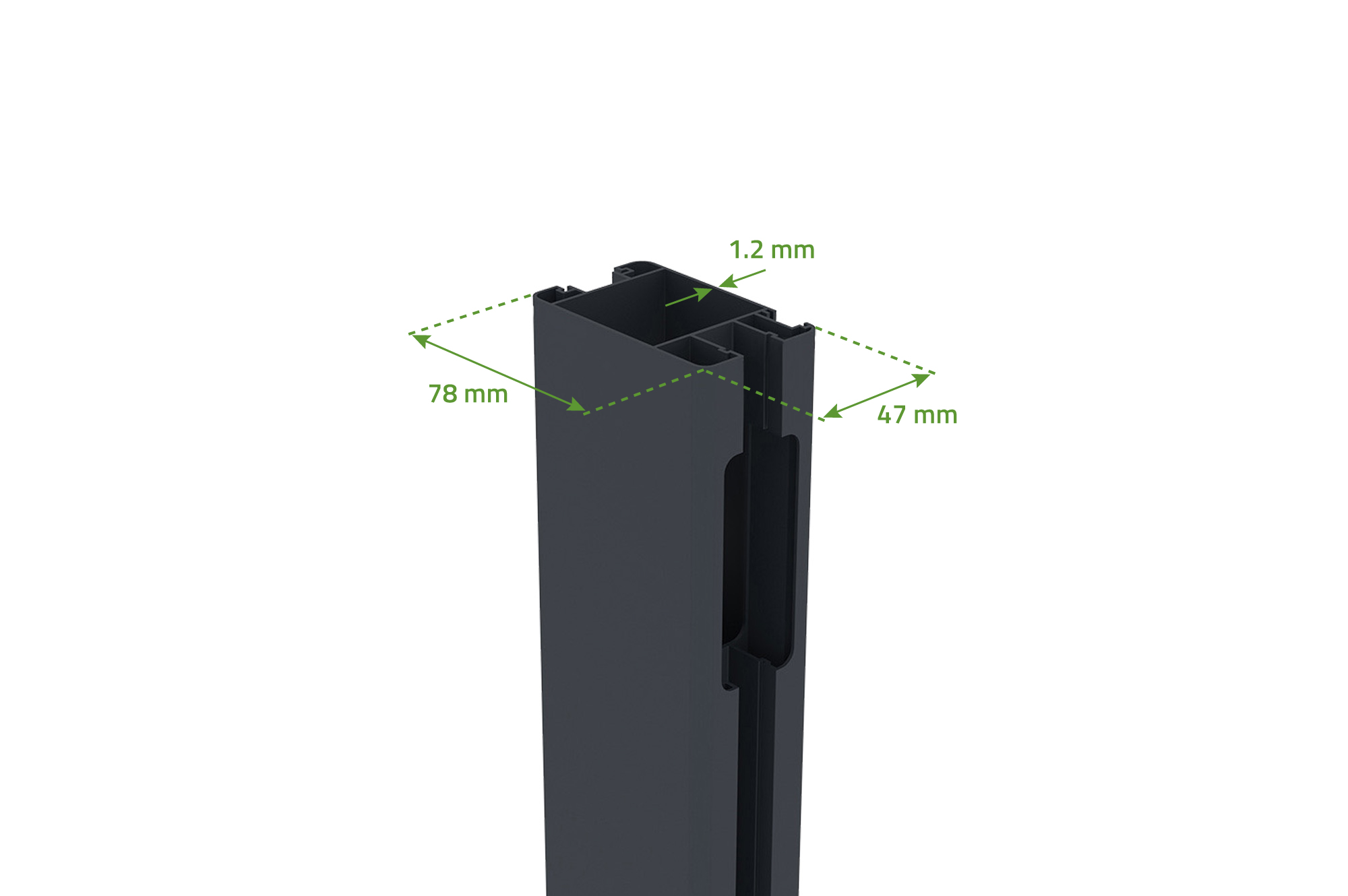

Amounts Section
78*47 mm
-

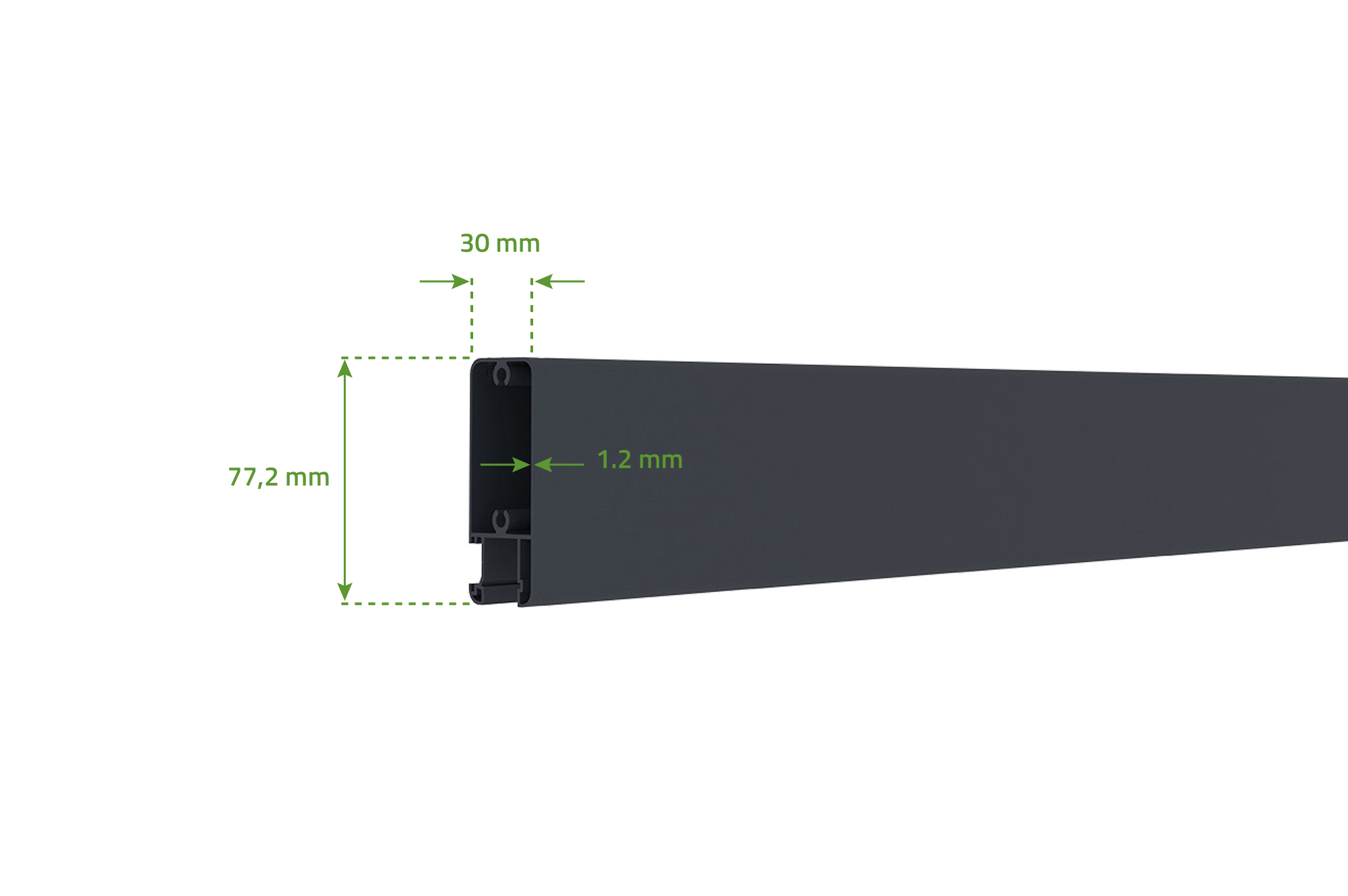

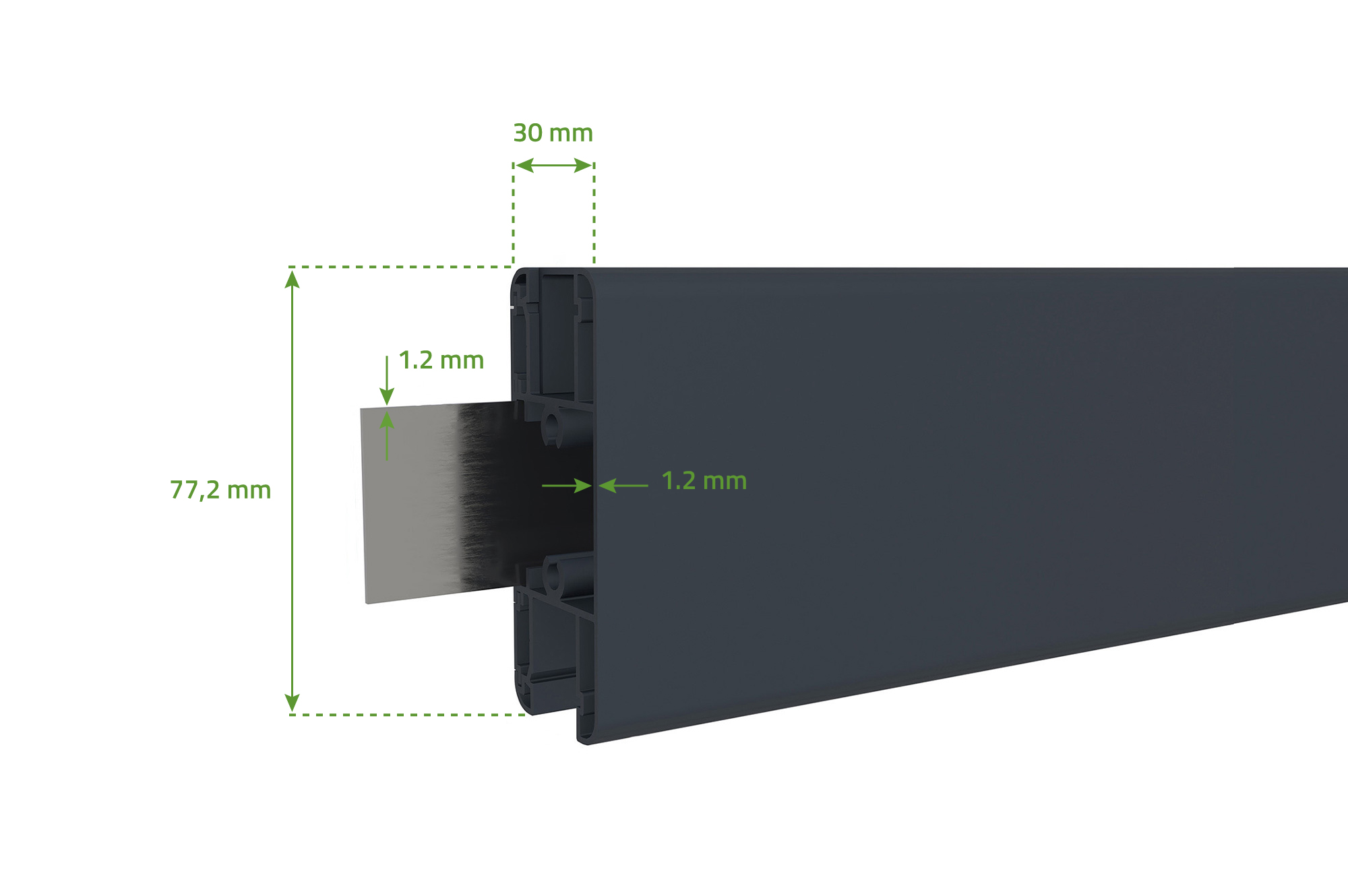

Sleeper Section
70*30 mm
-
Stud/rail assembly
Self-drilling screws
-
Supplied accessories
Yes
-
Adjustable installation accessories
Yes
-
Type of lock
5 keys
-
Locking system
Barrel lock
-
Handle material
Aluminum
-
Rod assembly
Self-drilling screws
-
Assembly time
4 h
-
Number of lower hinges
1
-
Height
148.2 cm
-
Colour
Charcoal grey
-
Frame material
Aluminium
-
Width between pillars
103.8 cm
-

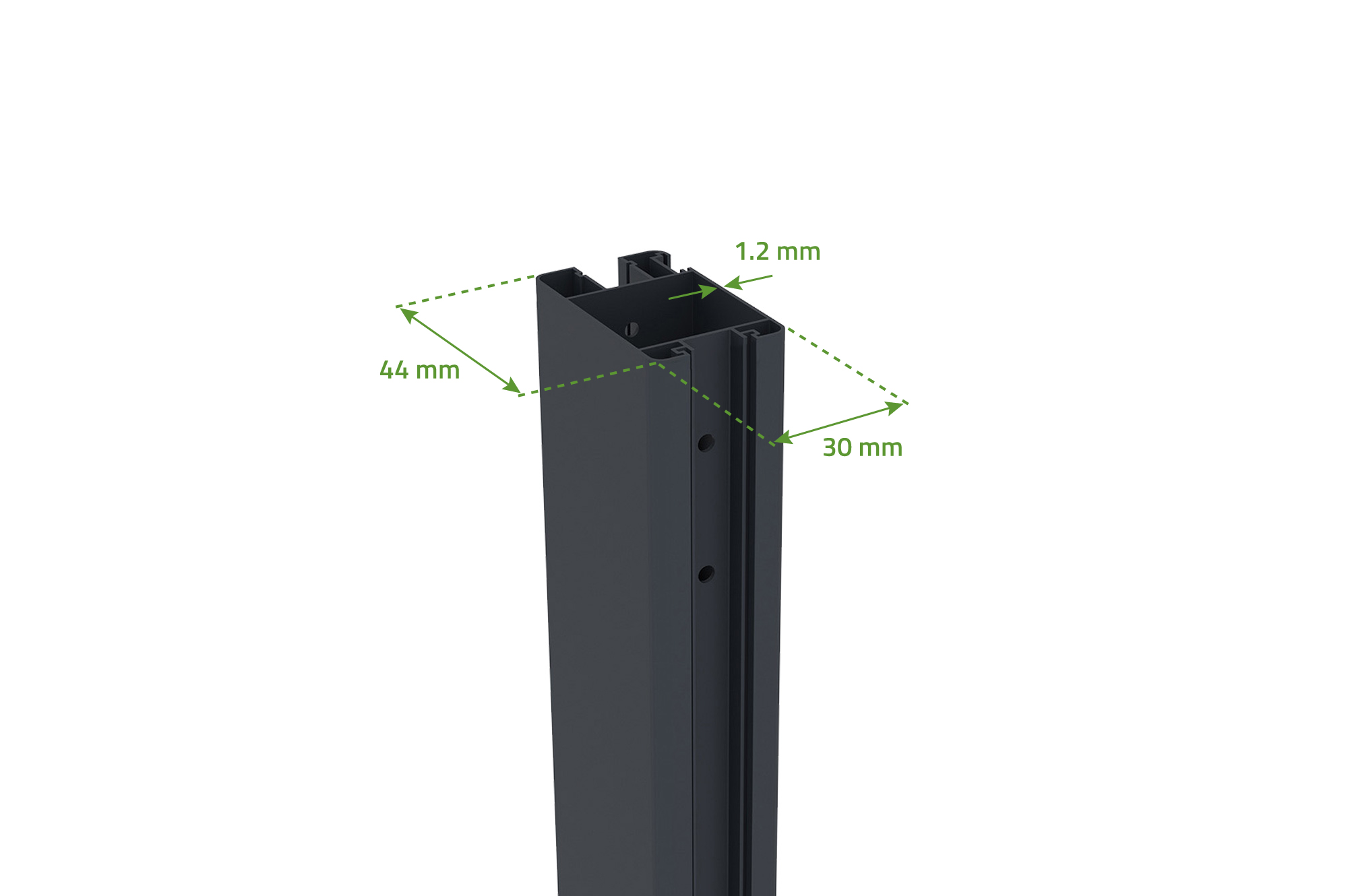

Stud thickness
1.5 mm
-
Pivoting system
Ball bearing
-
Width
99.5 cm
-
Minimum pillar height
160 cm
-
Number of end stops
1
-
Top cover cap
Yes
-
Assembly instructions
Yes
-
Recommended number of persons for assembly
2
-
Warranty
2 an(s)
-
Eligibility Extended warranty 5 years
No
-
Eligibility Extension of warranty 10 years
No
-
Number of upper hinges
1
