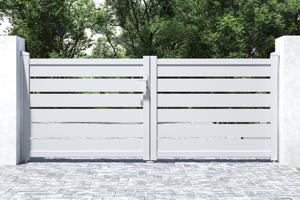

VOGEL 300B120 white electric swing gate + TANKER B250 motorization

SKU : PAC-000232
1258 €   1159 €

  • This motorized gate pack contains:
  • White VOGEL openwork swing gate
  • Width 300cm and Height 122cm
  • Actuator motorization (up to 600kg)

In stock - Delivery between 04/03 and 09/03
Free shipping


Technical data

    Aluminium driveway folding gate 3m VOGEL 300B120 WHITE

  • Height

    125 cm

  • Width

    300 cm

  • Main material

    Aluminium

  • Color

    White

  • RAL

    Blanc mat

  • Finishing

    Powder coating

  • Type of filling

    openworked

  • Pattern / Design

    --

  • Opening system

    Fighting

    Aluminium driveway folding gate 3m VOGEL 300B120 WHITE

  • Height

    125 cm

  • Width

    300 cm

  • Main material

    Aluminium

  • Color

    White

  • RAL

    Blanc mat

  • Finishing

    Powder coating

  • Type of filling

    openworked

  • Pattern / Design

    --

  • Opening system

    Fighting

  • Opening direction

    To the house, see technical diagram

  • Compatible engines

    Yes

  • Compatible motorization type

    With articulated arms

  • Frame material

    Aluminium

  • Width between pillars

    305 cm

  • Minimum pillar height

    140 cm

  • Operating clearance

    5 mm

  • Pivoting system

    Ball bearing

  • Blade section

    155*15 mm

  • Thickness of the blades

    1,2 mm

  • Amounts Section

    78*47 mm

  • Stud thickness

    1,5 mm

  • Sleeper Section

    70*30 mm

  • Sleeper thickness

    1,3 mm

  • Stud/rail assembly

    Self-enhancing vis

  • Locking system

    Cylinder lock

  • Handle material

    Aluminium

  • Handle colour

    White

  • Type of lock

    Keys (5)

  • Rod assembly

    Self-enhancing vis

  • Supplied accessories

    Yes

  • Number of upper hinges

    2

  • Number of lower hinges

    2

  • Central stop

    Yes

  • End stop

    2

  • Top cover cap

    Yes

  • Assembly instructions

    Yes

  • Assembly time

    8 h

  • Recommended number of persons for assembly

    2

  • Warranty

    2 ans

  • Eligibility Extended warranty 5 years

    No

  • Eligibility Extension of warranty 10 years

    No

  • Available in sliding

    No

  • Weight of package No.1

    25.0 kg

  • Overground Swing gate operator TANKER B250

  • Housing size

    25,5 x 18 x 8 cm

  • Type of mechanism

    Cylinder casement

  • Compatible for portals

    Aluminium, pvc, wood, iron

  • Power

    24 volt

  • Supply voltage

    220VAC±10%/110VAC±10% volt

  • Power consumption

    60 watts

  • Amperage

    --

  • Nominal operating thrust

    1090 Nm

  • Maximum thrust

    1110 Nm

  • Arm rotation speed in revolutions per minute

    300

  • Arm speed in centimeters per second

    2.5 cm/s

  • Opening time

    about 16 seconds.

  • Maximum size per fan

    2,5 m

  • Maximum weight per fan

    300 kg

  • Gate weight up to

    600 kg

  • Protection against rain

    IP55

  • Operating temperature

    -20°C to +50°C

  • Minimum opening angle

    90 °C

  • Maximum opening angle

    110 °C

  • Length of the closed arm

    78 cm

  • Length of open arm

    105 cm

  • Manual release

    Yes

  • Automatically programmable closing after opening

    Yes

  • Gradual opening / closing

    Yes

  • Adjustment of the opening and closing speed

    Yes

  • Co-ownership mode

    Yes

  • Obstacle detection

    Yes

  • Partial pedestrian opening

    Yes

  • Photocell Compatible

    Yes

  • Flashing light compatible

    Yes

  • External battery compatible

    Yes

  • Keyboard compatible

    Yes

  • Key lock compatible

    Yes

  • Number of remote controls included

    2

  • Number of remote control keys

    4

  • Maximum number of associable remote controls

    30

  • Electronic cabinet with electronic board

    Includes

  • Pole mounting brackets included

    Yes

  • Gate mounting brackets included

    Yes

  • Mounting accessories included

    Yes

  • Central gate stop included

    Yes

  • Screws included

    Yes

  • Infrared photocells included x2

    Yes

  • LED flashing light included

    Yes

  • Gross weight

    17 kg

  • Assembly instructions

    Yes

  • Assembly time

    4 h

  • Recommended number of persons for assembly

    2

  • Warranty

    2 ans

  • Eligibility Extended warranty 5 years

    No

  • Eligibility Extension of warranty 10 years

    No

  • Weight of package No.2

    18.0 kg

Description

  • This motorized gate pack contains:
  • White VOGEL openwork swing gate
  • Width 300cm and Height 122cm
  • Actuator motorization (up to 600kg)

Aluminium driveway folding gate 3m VOGEL 300B120 WHITE

The VOGEL swing driveway gate with its contemporary design is ideal for areas exposed to the wind.

Description : Open boarded swing …

Aluminium driveway folding gate 3m VOGEL 300B120 WHITE

The VOGEL swing driveway gate with its contemporary design is ideal for areas exposed to the wind.

Description : Open boarded swing gate, with horizontal slats and flat top
Material : Aluminium
Colour : Matt White
Dimensions : Width 300 cm x Height 125 cm
Required width between pillars : 305 cm
Minimum height of pillars : 140 cm
Inspired and designed in France

This do-it-yourself open-boarded double gate kit contains :
- 10 powder coated slats (Height 15.5 cm)
- 2 reinforced powder coated slats for motorisation (Height 15.5 cm)
- 2 upper hinges
- 2 bottom hinges
- 1 central stop
- 2 reception stops
- 1 sash lock
- 1 double handles (White colour)
- Set of 5 keys
- Finishing caps
- Screws and bolts

If you wish to motorise your double leaves gate, Casanoov suggests packs in the "Swing Gate" category
You will find promotional packs offering you a set consisting of a swing driveway gate of your choice accompanied by the appropriate automation.

In case your installation requires pillars, promotional packages are also available containing a swing driveway gate of your choice, together with two aluminium posts to match the chosen entrance gate.
FYI : The minimum pillar height for this gate is 140cm

The VOGEL model is also available in other sizes and colours.
For a harmonious exterior, we propose matching sliding gates, garden gates and fences.

To further adapt your swing gate to your project, all our double gate gates can be cut to width
(For an asymmetrical design for example or a narrower entrance).

Driveway gate delivered in kit form.
Clear instructions, quick and easy assembly.
You will find all the necessary information about this product in the technical data.


Overground Swing gate operator TANKER B250

The complete Tanker B250 piston swing gate operator kit is compatible for all swing gates made of iron, aluminium, PVC, wood.
You can motorise your gate up to 300kg per wing for a length of up to 2.50m per wing.

The motorisation includes :
- 2 motors with an electrical voltage of 24V / 60W
- A control box
- A central gate stop.
This stop is to be used if you have an automatic mechanical stop. Indeed, when you motorise your swing gate you must ensure that the central stop does not hold your gate. It is your swing gate operator that will secure your entrance.
- 2 fixing brackets for pillars allowing several opening angle configurations.
- 2 fixing brackets to fix your operator to your swing gate.
- 2 4-button remote controls with batteries included and protective flap.
- 1 LED flashing lamp with a power of 3W (equivalent to a power of 30W for an old generation incandescent type bulb) with the following characteristics :
- Operating voltage 12-265 VAC/DC
- Loading capacity < 3 W
- Flashing frequency 1 HZ
- Operating temperature -20°C ~ +60°C
- IP level IP54
- 1 pair of infra-red photocells with the following characteristics :
- transmitter' photocell
- Receiver' photocell
- Material ABS black
- Infrared with anti-glare 50 000LUX
- A set of screws to fix your motorisation to your posts, the control box and the shoe.

Accessories not included with the B250 motorisation:

Screws to fix the motorisation to the gate. These screws must be adapted to each type of gate and depend on the thickness of your gate.
For Casanoov swing gates, we advise you to fix your motorisation arms with Rivkle type blind rivets between 8 and 12mm long. The fixing bracket should be positioned on the reinforced blades provided for this purpose on all our swing gates and wicket gates.

Features of the B250 Tanker motorisation:

- Opening inwards and outwards.
- Opening angle between 90° and 110°.
- The opening angle depends on your installation constraints (You will find all the installation instructions in the free downloadable instructions on the product page).
- Manual disengagement of the motorization in case of power failure.
- Length of the retracted product 80cm.
- Length of open product 105cm. The working length of the arm is 300mm.
- The internal rotation speed is 300 revolutions per minute, which is 50% faster than the B150 model!
- Arm opening speed up to 2.5cm / second or about 16 seconds.
- The opening performance can be varied by using the soft open and soft close mode.
- The opening and closing speed as well as the drive power can be adjusted to 20 different positions.
- After opening, the gate can close automatically according to your chosen time interval between 0 and 99 seconds.
- You can choose to open every other gate leaf = pedestrian mode.
- Rain protection class IP 55
- The weight of both engines is about 17kg.
- Operating temperature : -20° à +50°
- Thrust force 1090N and maximum force 1110N. Electrical connection power between your house and the motor: 20VAC±10%/110VAC±10%.
- Auto stop function: when your gate encounters an obstacle the opening or closing of the gate is automatically interrupted.

You can combine external accessories with an operating power of 24V such as: emergency battery, magnetic or electric lock, push button.
