Are you looking for a sliding gate with angled slats to protect your privacy? Discover our CARPATIA range.

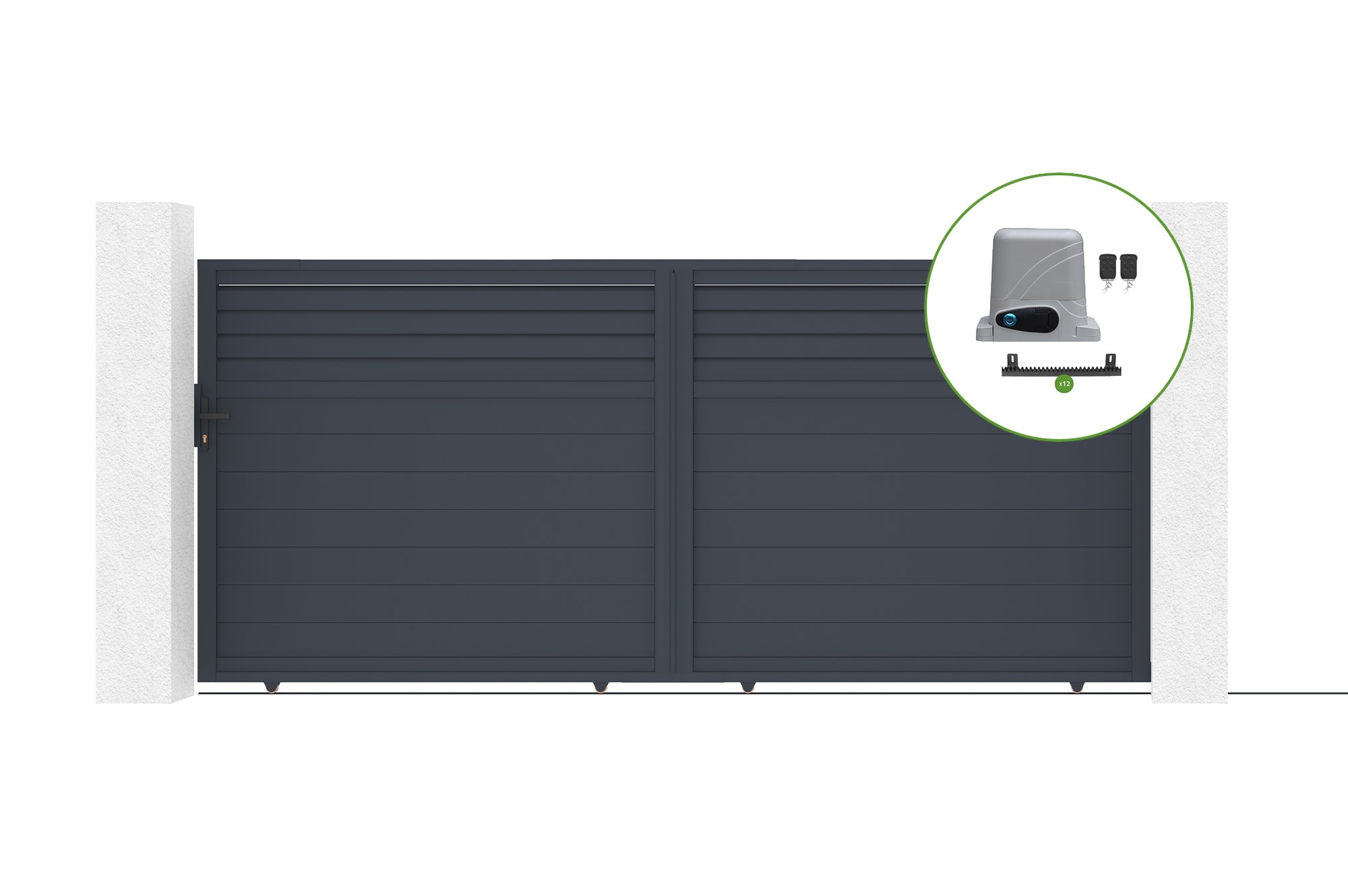

Discover the CARPATIA aluminum sliding gate, which combines both modernity and ingenuity thanks to its angled louvered slats. This design allows you to observe the exterior without being seen, while ensuring optimal protection of your privacy. The clean horizontal lines accentuate the modern look of this aluminum sliding gate, perfect for those who want to combine discretion and elegance in their outdoor design.
Sliding Gate: Suitable for large openings and difficult terrain
The sliding gate is designed to adapt to a wide variety of configurations, particularly sloping entrances or tight spaces. With a side opening, it allows for optimal space savings while facilitating vehicle access. Our sliding gates offer great durability with minimal maintenance. By adding a sliding gate motor, you benefit from complete automation, making the use of your motorized sliding gate even more convenient and seamless on a daily basis.
This sliding gate has a wind resistance of 55 km/h.
Material: Aluminum Color: Anthracite Gray - RAL 7016 Dimensions: Width 390 cm x Height 178 cm Total width required with clearance: 832 cm Minimum pillar height: 175 cm Inspired and designed in France
Aluminum is attractive for its lightness and ease of use, making it easy to install on all types of terrain. A modern material, it offers a wide range of designs and colors to complement your exterior. Resistant to impacts and climatic variations, it remains intact over time. By choosing aluminum, you benefit from a versatile, customizable, and durable design to enhance your outdoor space.
Need posts?
Our kits are sold without posts, as they are not essential if you already have pillars or supports suitable for installation. If you need them, discover our promotional packs that include the product of your choice and its matching posts. To ensure a safe and stable installation of your sliding gate, the posts must be at least 190 cm high and at least 15 cm wide.
How should you maintain your aluminum structure?
Aluminum requires little maintenance, but regular cleaning extends its lifespan. Once or twice a year, simply use warm soapy water and a soft cloth, then rinse and dry thoroughly. Avoid abrasive products and high-pressure cleaning, which can damage the lacquer.
Need help choosing your sliding gate? Contact our customer service via our online form.
The RANGER C300 sliding gate motor is designed for users wishing to motorize their sliding gate to automate its opening and closing. It allows you to transform your gate into an electric sliding gate. This rack-and-pinion motor is suitable for all types of sliding gates that can be motorized. Whether for PVC, wood, aluminum, or iron sliding gates, this automatic system can be installed on all models weighing less than 300 kg.
Here are the main technical specifications of the motor:
Motor voltage: 230V – 250W Input power: 220VAC ±10%/110VAC ±10% Frequency: 50Hz/60Hz Gear module: M4 Z=16 teeth Output torque: 30.0 Nm Nominal rotation speed: 14,000 rpm Maximum gate weight: 300 kg on level ground Magnetic start and end stops Environmental temperature: -25°C ~ +55°C Protection class: IP55 Opening speed: approximately 12 meters per minute Maximum force: 1100N Nylon rack Control card included in the motor.
This kit contains: - 1 motor - 2 4-button remote controls with protective covers. Batteries are included. - Nylon rack (4m – 12 pieces of 33cm) - Installation and setup manual - 2 quick release keys in case of power outage
The motor cannot be connected to a backup battery. In the event of a power outage, manual unlocking with two keys is possible. This disengages the motor's output pinion and allows you to operate your gate freely. The flashing light and photocells are not included.
RANGER C300 motor features:
- Opening according to your choice: left to right (factory mode) or right to left. - Automatic closing: After opening, the gate will automatically close after 0, 10, 30, or 60 seconds, depending on your choice. - Pedestrian mode: The gate opens only partially and then closes after 0, 5, 10, or 30 seconds. - Condominium mode: This mode allows you to reduce settings and configure up to 50 remote controls. Each remote control will control: button 1 (gate opening), button 2 (gate stopping), button 3 (gate closing), and button 4 (pedestrian mode). Each remote control will operate in the same way. - Adjustable opening and closing sensitivity: Depending on your environment, you can adjust the opening and closing power. - Manual gate release. Using the provided key, you can disengage the opening of your gate and operate it manually. - Auto-stop. The gate stops if it encounters an obstacle.
You can combine this motor with photocells, a flashing light, and an opening push button. Be sure to check the electrical compatibility (voltage in Volts) of your existing accessories if they are not from our website. All our accessories are compatible with all our motors.
Installation tips:
To successfully connect and configure your motor, proceed step by step and verify proper operation between each step. If you combine accessories with your C300 motor, check each time that your motor is in working order. Finally, ensure proper wiring of your electrical connection. This will help you manage your system and prevent electrical leaks. Our Casanoov technical team is here to assist you if needed.
Assembly instructions - KIT-000048
