Sliding gate kit 4m HALTI H.160cm grey aluminium
- Width: 396cm and Height: 163cm
- Ideal for a unique and elegant entrance
- Corrosion resistant
- Accessories included
By validating your purchases, you will be debited for the amount of your order
In reservation
Total before discount
€
Code
- €
Discount
- €
Total to pay (incl. VAT)
€
or
Save 99 €
Save 109 €
Save 59 €
Save 99 €
Save 109 €
Save 59 €
Save 168 €
Save 388 €
-5%
between 0 € and 1499.99 €*
-7%
between 1500 € and 2999.99 €*
-10%
greater than 3000 €*
*HT orders
Length of steel rail
8 m
Locking system
Barrel lock
Stud/rail assembly
Self-drilling screws
Type of lock
4 Keys
Finishing
mast
Supplied accessories
Yes
Eligibility Extended warranty 5 years
No
Compatible motorization type
sliding
Blade width
--
Assembly time
8 h
Length of steel rail
8 m
Locking system
Barrel lock
Stud/rail assembly
Self-drilling screws
Type of lock
4 Keys
Finishing
mast
Supplied accessories
Yes
Eligibility Extended warranty 5 years
No
Compatible motorization type
sliding
Blade width
--
Assembly time
8 h
RAL
7016
Operating clearance
26 mm
Sleeper Section
77*30 mm
Pattern / Design
HALTI
Warranty
2 an(s)
Required discharge length
4 m
Sleeper thickness
1.2 mm
Width between pillars
396 cm
Opening system
Sliding
Height
162.8 cm
Width
396 cm
Exists by beating
Yes
Handle material
Aluminium
Eligibility Extension of warranty 10 years
No
Required pillar height
180 cm
Type of filling
half openworked
Amounts Section
78*47 mm
Thickness of the blades
1.2 mm
Main material
Aluminium
Opening direction
left to right/right to left
Guide system
Upper guide with 4 nylon olives
Handle colour
Black
Number of wheels
4
Stud thickness
1.4 mm
Colour
Charcoal grey
Recommended number of persons for assembly
2
Assembly instructions
Yes
Frame material
Aluminium
Length of the tail of the sliding gate
25.4 cm
Wind resistance
55 km/h
Rod assembly
Self-drilling screws
Compatible engines
Yes
Weight of package No.1
21.0 kg
Weight of package No.2
27.5 kg
Weight of package No.3
28.0 kg
Weight of package No.4
13.5 kg

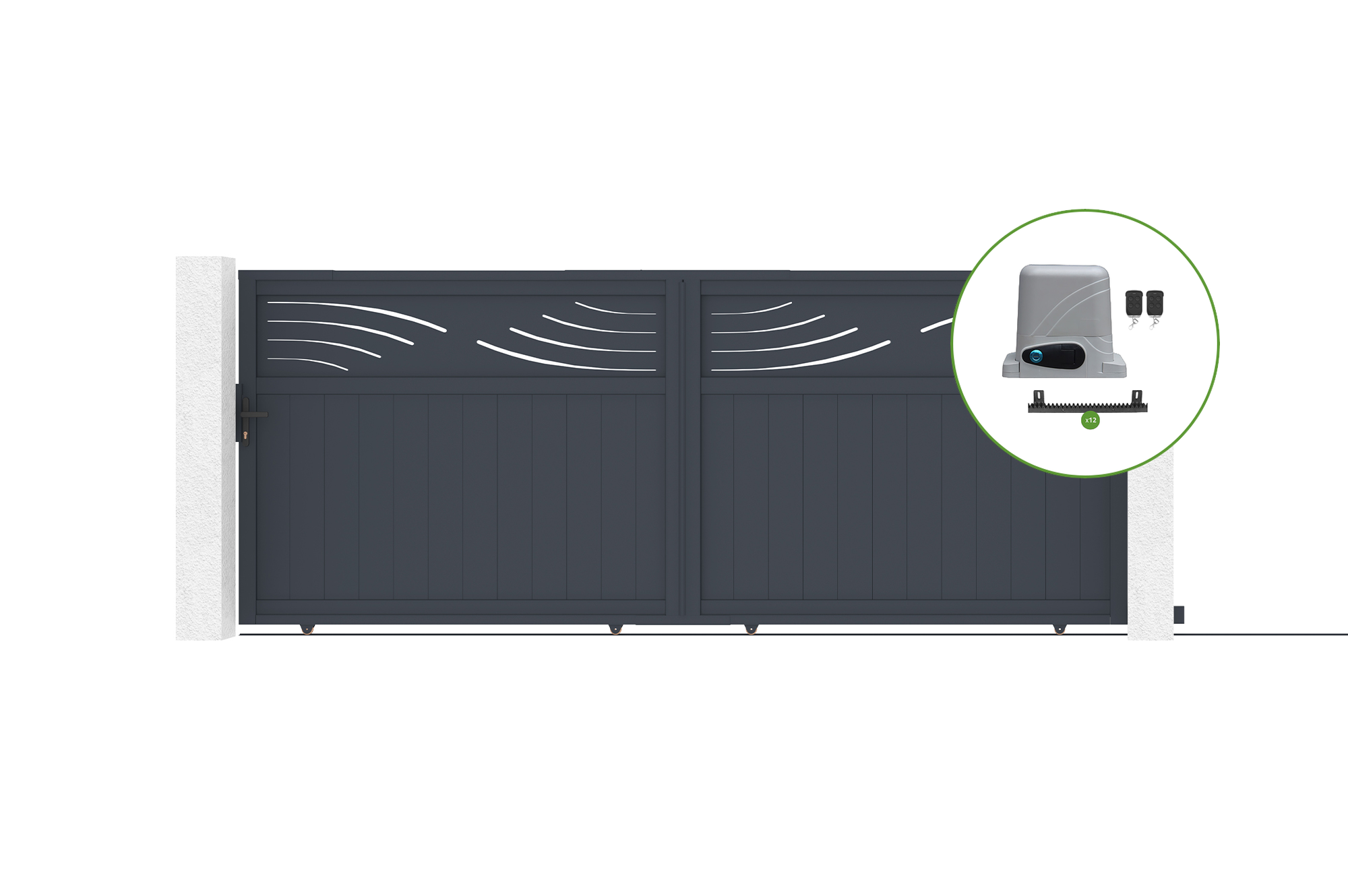

The HALTI Driveway sliding gate, with its classic design, is given a modern and unique touch by the decorative plate with the "Nature" motif which covers the entire upper part of the gate.
Description : Design sliding gate with pattern, vertical board
Material : Aluminium
Colour : Anthracite grey (RAL 7016)
Dimensions : Width 396cm x Height 163cm
Required width with clearance : 843cm
Minimum height of pillars : 175cm
Inspired and designed in France
This contemporary sliding gate kit, to be assembled and installed by yourself, contains :
- 24 powder-coated aluminium slats (Width 15.5cm)
- 2 decorative aluminium plates with "Nature" motif (Thickness 20/100)
- 1 top guide with 4 nylon wheels
- 7.9m aluminium guide rail
- 4 steel wheels
- 1 closes strike box
- 1 limit stop
- 1 cylinder lock
- 1 handle (Colour Black)
- 5 keys
- Finishing caps
- Screws and bolts
If you want an automatic sliding gate, you will find promotional packages consisting of a sliding gate of your choice with the appropriate sliding gate automation.
If your installation requires pillars, Casanoov offers promotional packages in the "Sliding Gate" category
These packages contain one Aluminium sliding gate of your choice, together with two aluminium posts to match the chosen dual sliding gate.
The HALTI model is also available in other sizes.
Also available as a pedestrian or double swing gate
Driveway Gate delivered in kit form
Clear instructions, quick and easy assembly
You will find all the necessary information about this product in the technical data
It is technically possible to install your gate with an opening from the right to the left.
You will find all the information you need to change the opening direction in our installation instructions.
Our installation instructions for sliding gates have been designed to offer you two different installation methods depending on the chosen opening direction: from left to right or from right to left.
For further information, please contact our customer service via our contact form.
