Height
145 cm
Width
390 cm
Main material
Aluminium
Color
Anthracite Grey
RAL
7016
Finishing
Powder coating
Type of filling
openworked
Pattern / Design
--
Opening system
Sliding
Opening direction
left to right / right to left
Height
145 cm
Width
390 cm
Main material
Aluminium
Color
Anthracite Grey
RAL
7016
Finishing
Powder coating
Type of filling
openworked
Pattern / Design
--
Opening system
Sliding
Opening direction
left to right / right to left
Compatible engines
Yes
Compatible motorization type
sliding
Frame material
Aluminium
Width between pillars
390 cm
Required pillar height
160 cm
Operating clearance
26 mm
Length of the tail of the sliding gate
25 cm
Guide system
Upper guide with 4 nylon olives
Required discharge length
4 m
Blade width
155*15 mm
Thickness of the blades
1,2 mm
Amounts Section
47*78 mm
Stud thickness
1,5 mm
Sleeper Section
70*30 mm
Sleeper thickness
1,3 mm
Stud/rail assembly
Self-tapping screws
Locking system
Cylinder lock
Handle colour
Black
Handle material
Aluminium
Type of lock
4 keys
Rod assembly
Self-tapping screws
Supplied accessories
Yes
Number of wheels
4
Length of steel rail
8 m
Assembly instructions
Yes
Assembly time
8 h
Recommended number of persons for assembly
2
Warranty
2 ans
Eligibility Extended warranty 5 years
No
Eligibility Extension of warranty 10 years
No
Exists by beating
Yes
Weight of package No.1
15.0 kg
Weight of package No.2
27.0 kg
Weight of package No.3
23.0 kg

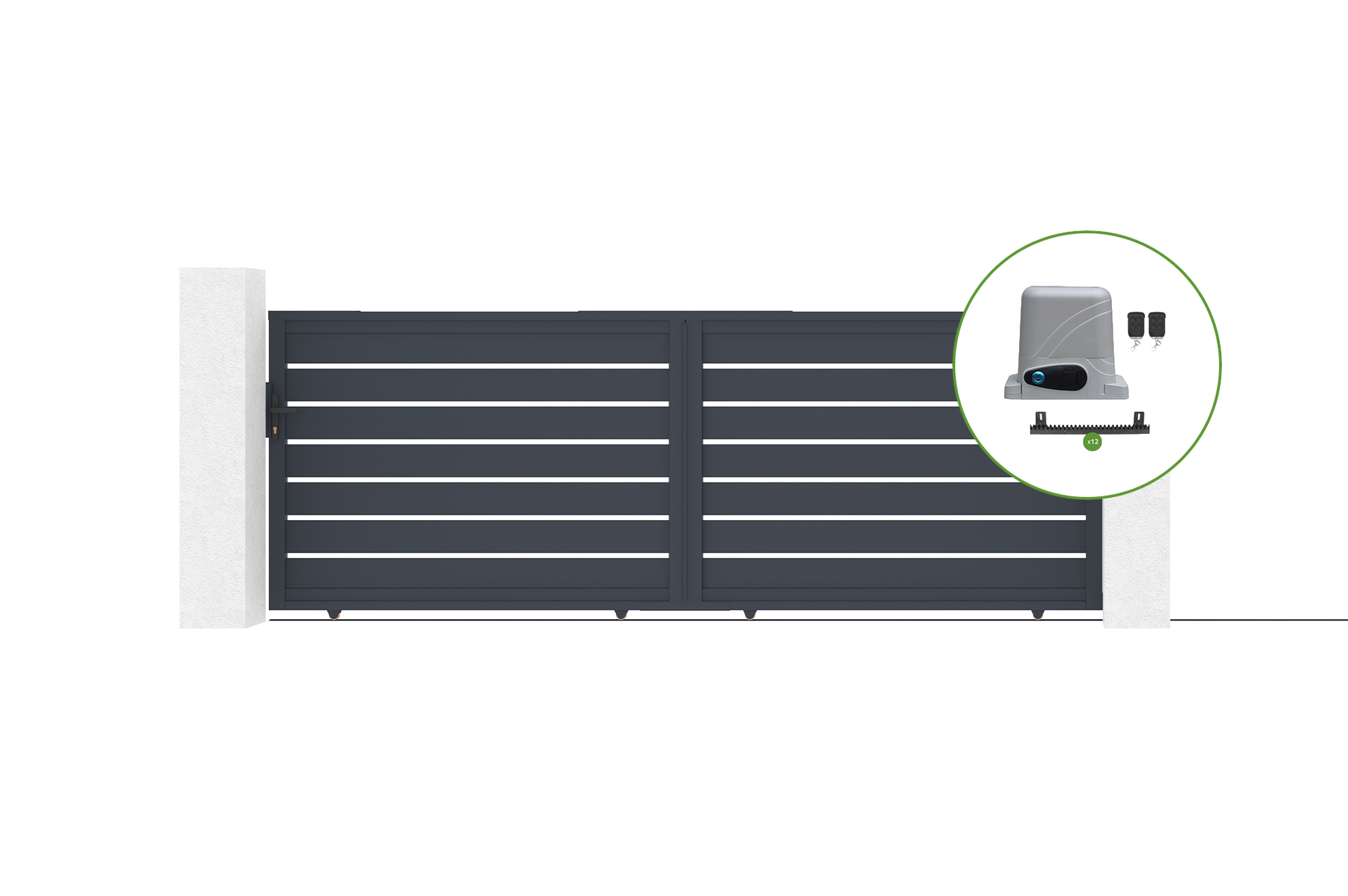

The VOGEL sliding driveway gate with its contemporary design is ideal for areas exposed to the wind.
Description : Open boarded sliding gate, with horizontal slats and flat top
Material: Aluminium
Colour: Anthracite grey (RAL 7016)
Dimensions : Width 390 cm x Height 145 cm
Total width required with clearance : 832 cm
Minimum height of pillars: 160 cm
Inspired and designed in France
This do-it-yourself open-boarded sliding gate kit contains :
- 12 powder coated slats (Height 15.5 cm)
- 2 reinforced powder coated slats for motorisation (Height 15.5 cm)
- 1 top guide with 4 nylon wheels
- 8m aluminium guide rail
- 4 steel wheels
- 1 closes strike box
- 1 limit stop
- 1 sash lock
- 1 double handles (Black colour)
- Set of 5 keys
- Finishing caps
- Screws and bolts
If you wish to motorise your sliding gate, Casanoov suggests packs in the "Sliding Gate" category
You will find promotional packs offering you a set consisting of a sliding driveway gate of your choice accompanied by the appropriate automation.
In case your installation requires pillars, promotional packages are also available containing a sliding driveway gate of your choice, together with two aluminium posts to match the chosen entrance gate.
FYI : The minimum pillar height for this gate is 160cm
The VOGEL model is also available in other sizes and colours.
For a harmonious exterior, we propose matching swing gates, garden gates and fences.
Driveway gate delivered in kit form.
Clear instructions, quick and easy assembly.
You will find all the necessary information about this product in the technical data.
It is technically possible to install your gate with an opening from the right to the left.
You will find all the information you need to change the opening direction in our installation instructions.
Our installation instructions for sliding gates have been designed to offer you two different installation methods depending on the chosen opening direction: from left to right or from right to left.
