Height
163 cm
Width
298 cm
Main material
Aluminium
Color
Anthracite Grey
RAL
7016
Finishing
Powder coating
Type of filling
Full
Pattern / Design
--
Opening system
Sliding
Opening direction
left to right / right to left
Height
163 cm
Width
298 cm
Main material
Aluminium
Color
Anthracite Grey
RAL
7016
Finishing
Powder coating
Type of filling
Full
Pattern / Design
--
Opening system
Sliding
Opening direction
left to right / right to left
Compatible engines
Yes
Compatible motorization type
sliding
Frame material
Aluminium
Width between pillars
298 cm
Required pillar height
180 cm
Operating clearance
26 cm
Length of the tail of the sliding gate
25 cm
Guide system
Upper guide with 4 nylon olives
Required discharge length
3 m
Blade width
160*15 mm
Thickness of the blades
1,2 mm
Amounts Section
47*78 mm
Stud thickness
1,5 mm
Sleeper Section
70*30 mm
Sleeper thickness
1,3 mm
Stud/rail assembly
Self-tapping screws
Locking system
Cylinder lock
Handle colour
Black
Handle material
Aluminium
Type of lock
4 keys
Rod assembly
Self-tapping screws
Supplied accessories
Yes
Number of wheels
4
Length of steel rail
6 m
Assembly instructions
Yes
Assembly time
8 h
Recommended number of persons for assembly
2
Warranty
2 years
Eligibility Extended warranty 5 years
No
Eligibility Extension of warranty 10 years
No
Exists by beating
Yes
Weight of package No.1
27.0 kg
Weight of package No.2
15.0 kg
Weight of package No.3
21.0 kg

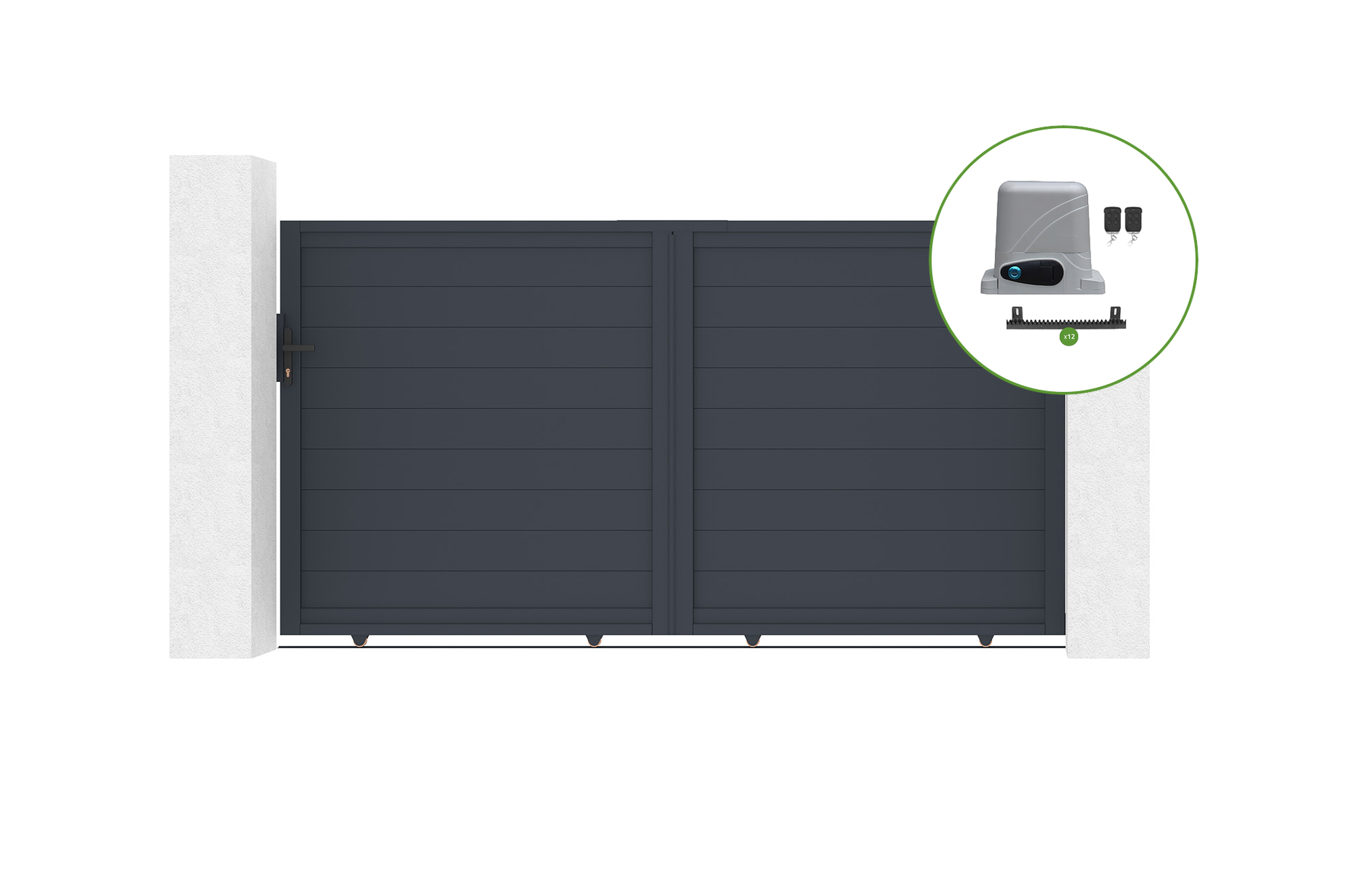

This solid sliding gate combines protection and design.
Colour anthracite grey. RAL7016
The aluminium plate is 20/100 thick.
Accessories:
2 upper hinges.
2 lower hinges.
Cylinder lock.
2 keys.
Limit stop.
Upper guide with 4 nylon wheels.
Reception stop.
4 wheels.
6 m aluminium rail.
Screws.
Posts not included. Height of posts minimum 175 cm.
Delivered in kit. Clear instructions, quick and easy assembly.
You can automate the gate with a sliding gate operator.
Find all the characteristics in the data sheet.
