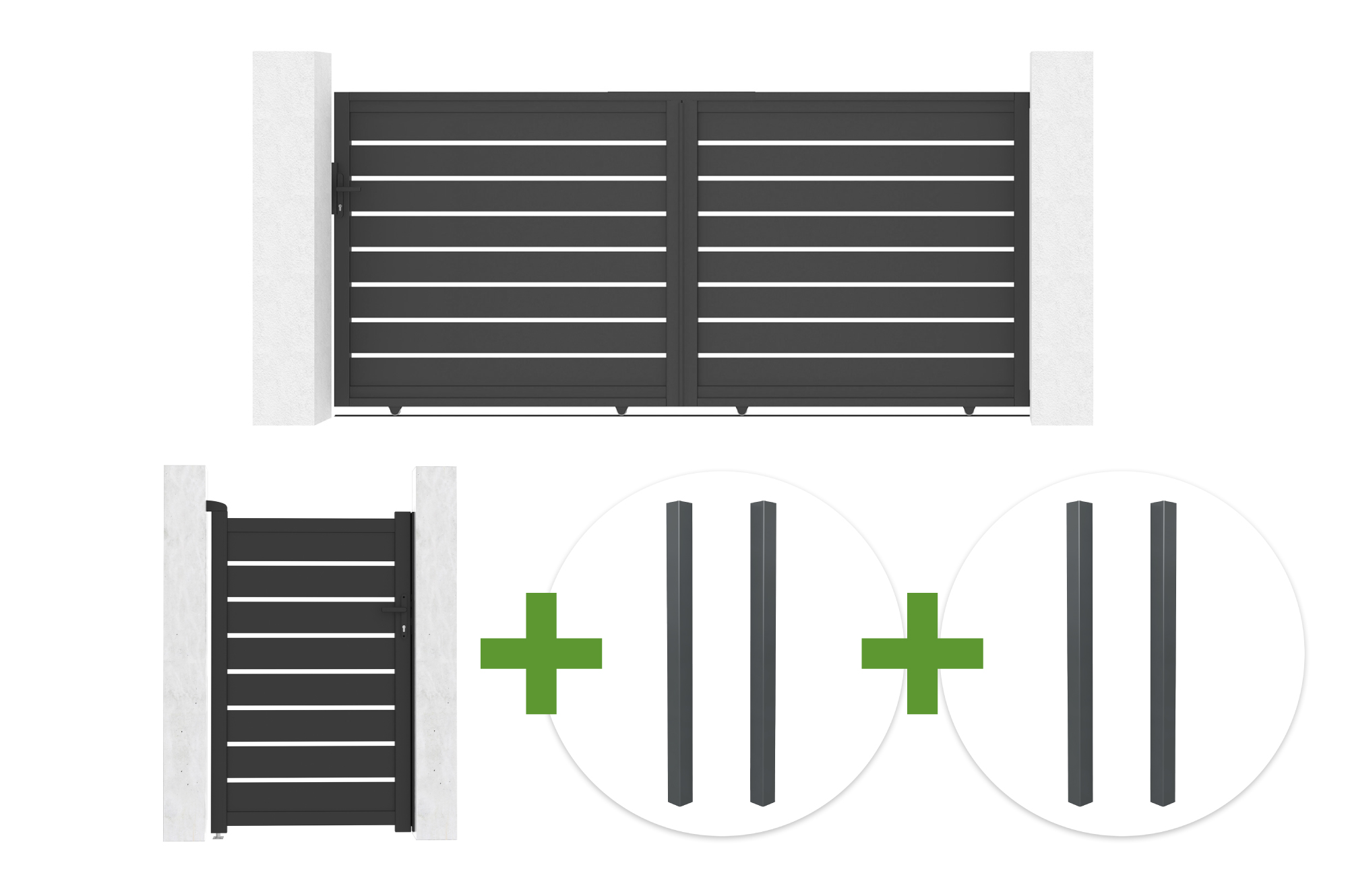

Sliding gate kit 3,5m VOGEL H.160cm + side gate 1m VOGEL H.160cm grey aluminium
- This kit includes :
- Sliding gate kit VOGEL grey aluminium
- Width 348cm and Height 163cm
- Side gate VOGEL grey aluminium
Our categories:
Suggested products:
KIT-000014
1029 €
FREE MOTOR: Until 06/01: The RANGER C300 motorization is FREE with the purchase of a sliding gate.
Secure payment
Delivery within 5 days
Free shipping
1029 €
Save money! Discover the packs bundled with this product
-5%
between 0 € and 1499.99 €*
-7%
between 1500 € and 2999.99 €*
-10%
greater than 3000 €*
*HT orders
Are you looking for a modern and sleek sliding gate to enhance your exterior? Discover our VOGEL range.
The VOGEL openwork sliding gate boasts a modern and sleek design, ideal for enhancing your exterior. Thanks to its spaced horizontal slats, it allows excellent natural light to circulate while providing protection from prying eyes. Its timeless style adapts to any environment, adding a touch of elegance to your entrance. Made of aluminum, the VOGEL sliding gate guarantees strength and durability, while offering an optimal security system. Choosing the VOGEL aluminum sliding gate combines aesthetics, functionality, and durability for a secure and harmonious exterior.
Sliding Gate: Space Saving and Security
With its side opening, the sliding gate is the perfect solution for those with limited space. Unlike swing gates, they require no setback. This advantage is particularly useful for small entrances or sloped access points. In addition to its practicality, it offers enhanced protection thanks to its robust structure and high-performance locking systems. For even greater convenience, a sliding gate motor allows for automated opening and closing, ensuring smooth and secure daily use.
This sliding gate has a wind resistance of 60 km/h.
Material: Aluminum
Color: Anthracite Gray - RAL 7016
Dimensions: Width 348 cm x Height 163 cm
Total width required with clearance: 748 cm
Minimum pillar height: 175 cm
Inspired and designed in France
This kit contains:
- 14 powder-coated slats (height 15.5 cm)
- 2 reinforced powder-coated slats for motorization (height 15.5 cm)
- 1 upper guide with 4 nylon rollers
- 7 m steel guide rail
- 4 steel rollers
- 1 receiving strike plate
- 1 receiving stop
- 1 cylinder lock
- 1 handle (black)
- 5 keys
- Finishing caps
- Screws
About the Material
Aluminum stands out for its lightness, strength, and corrosion resistance. This material does not rust and retains its appearance over time, even in the face of adverse weather conditions. Easy to maintain, simple regular cleaning is enough to preserve its original shine. Durable and attractive, aluminum is ideal for your outdoor landscaping, offering a modern and high-performance solution. By choosing aluminum, you combine practicality, longevity, and elegance every day.
Need posts?
Posts are not included in our kits, as they are not necessary if you already have exterior pillars or posts for installing your product.
If you need pillars, we offer promotional packs that include the product of your choice with two suitable posts.
To ensure a safe and stable installation of the sliding gate, the posts must be at least 175 cm high and at least 15 cm wide.
How should I maintain my aluminum product?
Aluminum requires very little maintenance.
To preserve its shine and durability, clean it once or twice a year with warm, soapy water and a soft cloth.
Rinse and dry thoroughly, and avoid abrasive products or high-pressure cleaning, which could damage the powder coating.
Need help choosing your sliding gate?
Contact our customer service via our online form.
Product delivered in kit form
Clear instructions
Quick and easy assembly
Find all the necessary information about this product in the Technical specifications
Download the instructionsWind resistance
60 km/h
Height
163 cm
Width
348 cm
Main material
Aluminium
Colour
Charcoal grey
RAL
7016
Finishing
Sand mat
Type of filling
openworked
Pattern / Design
VOGEL
Opening system
Sliding
Opening direction
left to right / right to left
Compatible engines
Yes
Compatible motorization type
Sliding
Frame material
Aluminium
Width between pillars
348 cm
Required pillar height
180 cm
Operating clearance
26 mm
Length of the tail of the sliding gate
25 cm
Guide system
Upper guide with 4 nylon olives
Required discharge length
3.5 m
Blade width
155 mm
Thickness of the blades
1.2 mm
Amounts Section
78*47 mm
Stud thickness
1.5 mm
Sleeper Section
70*30 mm
Sleeper thickness
1.2 mm
Stud/rail assembly
Self-drilling screws
Locking system
Barrel lock
Handle colour
Black
Handle material
Aluminium
Type of lock
5 keys
Rod assembly
Self-drilling screws
Supplied accessories
Yes
Number of casters
4
Length of steel rail
7 m
Assembly instructions
Yes
Assembly time
8 h
Recommended number of persons for assembly
2
Warranty
2 an(s)
Eligibility Extended warranty 5 years
No
Eligibility Extension of warranty 10 years
No
Exists by beating
Yes
